SAGARA patrol ships (1990-1992/2007-2008), SURAKSHA Coast Guard patrol ship (1988/2017)

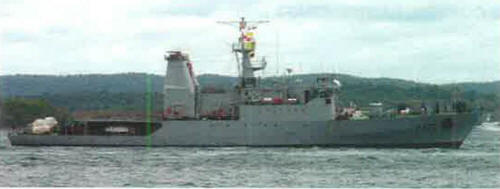

Sagara 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| සාගර [Sagara] (ex-वराह [Varaha]) | P622 | Goa SYd, India | 5.11.1990 | 11.3.1992 // 2.2007 | in service (2019) | ||
| සයුරළ [Sayurala] (ex-विग्रह [Vigraha]) | P623 | Mazagon Dock, Bombay, India | 1.12.1988 | 12.4.1990 // 23.8.2008 | to India 1.2011 (विग्रह [Vigraha]) | ||
| සමුද්රරක්ෂ [Samudraraksha] (ex-वरुणा [Varuna]) | Mazagon Dock, Bombay, India | 1.2.1984 | 27.2.1988 // 23.8.2017 | Coast Guard, in service (2019) |
Technical data
| Displacement standard, t | 1064 |
|---|---|
| Displacement full, t | 1224 |
| Length, m | 74.1 |
| Breadth, m | 11.4 |
| Draught, m | 3.50 |
| No of shafts | 2 |
| Machinery | 2 SEMT-Pielstick 16PA6 V280 diesels |
| Power, h. p. | 12800 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil 180 |
| Endurance, nm(kts) | 4000(16) |
| Armament | 1 x 1 - 30/80 Medak CRN-91, 2 x 2 - 14.5/93, 2 x 1 - 12.7/79, 1 helicopter (Bell 212) |
| Electronic equipment | Decca 1230, Decca 1226 radars |
| Complement | 95 |
Standard scale images
Sagara 2010
Graphics
Sagara 2008
Project history
Former Indian Coast Guard ships of Vikram class.
Modernizations
None.
Naval service
No significant events.
