No278 (project 037) large patrol craft (1964-1982)





No283 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
招远 [Zhaoyuan] 605   Huangpu SY, Guangzhou     1964 stricken 2000/13
平度 [Pingdu] 606   Huangpu SY, Guangzhou     1965 stricken 2000/13
  607   Huangpu SY, Guangzhou     1969 stricken 2000/13
沂水 [Yishui] 608   Huangpu SY, Guangzhou     1969 stricken 2000/13
日照 [Rizhao] 609   Huangpu SY, Guangzhou     1980 stricken 2000/13
洛宁 [Luoning] 610   Qingdao SY 6.1977 31.5.1980 12.1980 stricken 2000/13
西丰 [Xifeng] 615   Qiuxin SY, Jiangnan 1.1972 30.4.1972 1.1975 stricken 2000/13
昌图 [Changtu] 616   Qiuxin SY, Jiangnan 5.1972 24.10.1972 1.1975 stricken 2000/13
济源 [Jiyuan] 617   Qingdao SY 6.1975 26.9.1976 12.1976 stricken 2000/13
庆云 [Qingyun] 618   Qingdao SY 7.1975 18.8.1977 12.1977 stricken 2005
惠民 [Huimin] 619   Qingdao SY 6.1977 17.11.1978 12.1978 stricken 2008
清原 [Qingyuan] 620   Qiuxin SY, Jiangnan 5.1977 31.7.1977 4.1978 stricken 2.2011
博兴 [Boxing] 621   Qiuxin SY, Jiangnan 6.1977 13.9.1977 4.1978 stricken 2017
蓬莱 [Penglai] 622   Qiuxin SY, Jiangnan 7.1977 28.9.1977 9.1978 in service (2019)
牟平 [Mouping] 623   Qiuxin SY, Jiangnan 8.1977 9.11.1977 11.1978 in service (2019)
文登 [Wendeng] 624   Qiuxin SY, Jiangnan 9.1977 19.12.1977 12.1978 in service (2019)
太康 [Taikang] 625   Qiuxin SY, Jiangnan 12.1977 6.5.1978 8.1979 in service (2019)
新宾 [Xinbin] 626   Qiuxin SY, Jiangnan 11.1978 27.1.1979 7.1979 in service (2019)
荣成 [Rongcheng] 627   Qiuxin SY, Jiangnan 12.1978 5.2.1979 7.1979 stricken 10.2012
开原 [Kaiyuan] 628   Qiuxin SY, Jiangnan 1.1979 10.4.1979 1.1980 wrecked 10.2010
石潮 [Kanping] 629   Qiuxin SY, Jiangnan 11.1980 6.3.1981 5.1982 stricken 2017
淮安 [Jian] 630   Qiuxin SY, Jiangnan 10.1980 19.1.1981 3.1982 in service (2019)
海宁 [Haining] 637   Qiuxin SY, Jiangnan     1969 stricken 2000/13
德清 [Deqing] 638   Qiuxin SY, Jiangnan     1970 stricken 2000/13
长兴 [Zhangxing] 639   Qiuxin SY, Jiangnan     1970 stricken 2000/13
临安 [Lin'an] 640   Qiuxin SY, Jiangnan     1973 stricken 2000/13
宁海 [Ninghai] 641   Qiuxin SY, Jiangnan 10.1975 29.2.1976 8.1976 stricken 2000/13
嘉定 [Jiading] 642   Qiuxin SY, Jiangnan 3.1976 30.5.1976 2.1977 stricken 2000/13
奉贤 [Fengxian] 643   Qiuxin SY, Jiangnan 4.1976 30.6.1976 5.1977 stricken 2017
吴江 [Wujiang] 644   Qiuxin SY, Jiangnan 5.1976 14.7.1976 2.1977 stricken 2000/13
兴国 [Xingguo] 645   Qiuxin SY, Jiangnan 7.1976 22.1.1977 12.1977 stricken 2000/13
闽清 [Minqing] 646   Qiuxin SY, Jiangnan 1.1977 6.5.1977 12.1977 stricken 2000/13
华安 [Hua'an] 647   Qiuxin SY, Jiangnan 3.1977 20.5.1977 1.1978 stricken 2000/13
南安 [Nan'an] 648   Qiuxin SY, Jiangnan 4.1977 4.7.1977 3.1978 stricken 2000/13
松江 [Songjiang] 649   Chungking SY 1.1978 18.12.1980 1981 stricken 2002
海安 [Hai'an] 650   Chungking SY 11.1978 1980 12.1981 in service (2019)
泉州 [Quanzhou] 658   Huangpu SY, Guangzhou     1964 stricken 2000/13
新州 [Xinzhou] 659   Huangpu SY, Guangzhou     1965 stricken 2000/13
  660   Huangpu SY, Guangzhou     1969 stricken 2000/13
  661   Huangpu SY, Guangzhou     1971 stricken 2000/13
  662   Huangpu SY, Guangzhou     1972 stricken 2000/13
  663   Huangpu SY, Guangzhou     1972 stricken 2000/13
海康 [Haikang] 664   Huangpu SY, Guangzhou 3.1969 22.3.1973 12.1974 stricken 2000/13
文昌 [Wenchang] 665   Huangpu SY, Guangzhou 3.1969 20.9.1974 3.1975 stricken 2000/13
琼海 [Qionghai] 666   Huangpu SY, Guangzhou 6.1975 10.11.1976 5.1977 stricken 2000/13
汶川 [Wenchuan] 668   Huangpu SY, Guangzhou 3.1976 1.7.1978 12.1979 stricken 2003
宁南 [Ningnan] 669   Huangpu SY, Guangzhou 3.1976 16.2.1979 12.1979 stricken 2000/13
会东 [Huidong] 670   Qiuxin SY, Jiangnan 9.1977 26.12.1977 12.1978 stricken 2000/13
安岳 [Anyue] 671   Qiuxin SY, Jiangnan 11.1977 27.1.1978 3.1979 stricken 2000/13
宜章 [Yizhang] 672   Huangpu SY, Guangzhou 3.1978 13.5.1980 12.1982 stricken 2000/13
新宁 [Xinning] 673   Huangpu SY, Guangzhou 3.1978 9.8.1980 12.1980 stricken 2000/13
平南 [Pingnan] 674   Huangpu SY, Guangzhou 6.1978 25.10.1980 12.1980 stricken 2007
上林 [Shanglin] 675   Huangpu SY, Guangzhou 6.1978 20.10.1980 12.1980 stricken 2000/13
武鸣 [Wuming] 676   Qiuxin SY, Jiangnan 2.1979 24.4.1979 1.1980 stricken 2000/13
天峨 [Tian'e] 677   Qiuxin SY, Jiangnan 9.1979 2.12.1979 1.1981 in service (2019)
来宾 [Laibin] 678   Qiuxin SY, Jiangnan 12.1979 2.3.1980 1.1981 stricken 2000/13
宁明 [Ningming] 679   Huangpu SY, Guangzhou 7.1979 4.5.1981 12.1981 stricken 1.2005
武平 [Wuping] 680   Qiuxin SY, Jiangnan 12.1978 2.3.1979 8.1979 in service (2019)
云霄 [Yunxiao] 681   Qiuxin SY, Jiangnan 4.1979 18.1.1980 1.1981 in service (2019)
宁德 [Ningde] 682   Qiuxin SY, Jiangnan 2.1980 16.5.1980 1.1981 stricken 2017
下各 [Xianju] 683   Qiuxin SY, Jiangnan 5.1980 12.8.1980 6.1981 in service (2019)
武义 [Wuyi] 684   Qiuxin SY, Jiangnan 7.1980 6.10.1980 8.1981 stricken 2011
荫昌 [Yinchang] 685   Qiuxin SY, Jiangnan 7.1980 13.10.1980 9.1981 stricken 12.2013
江阴 [Jiangyin] 686   Qiuxin SY, Jiangnan 8.1980 10.11.1980 2.1982 stricken 8.2011
宜兴 [Yixing] 687   Qiuxin SY, Jiangnan 10.1980 26.12.1980 12.1981 in service (2019)
兴化 [Xinghua] 689   Chungking SY 7.1979 1981 6.1982 stricken 6.2013
宣恩 [Xuanen] 690   Chungking SY 9.1982 16.8.1984 1985 stricken 2000/13
利川 [Lichuan] 691   Chungking SY 12.1982 14.11.1984 1985 stricken 2000/13
涟水 [Lianshui] 692   Qiuxin SY, Jiangnan 3.1984 2.6.1984 3.1985 in service (2019)
咸丰 [Xianfeng] 695   Qiuxin SY, Jiangnan 1.1985 2.4.1985 1.1986 in service (2019)
安陆 [Anlu] 696   Qiuxin SY, Jiangnan 4.1985 5.7.1985 4.1986 in service (2019)
清远 [Qingyuan] 699   Chungking SY 12.1983 30.9.1986 1987 in service (2019)
抚松 [Fusong] 700   Qiuxin SY, Jiangnan 12.1980 20.3.1981 6.1982 in service (2019)
海龙 [Hailong] 701   Qiuxin SY, Jiangnan 1.1981 18.4.1981 8.1982 stricken 2000/13
靖宇 [Jingyu] 702   Qiuxin SY, Jiangnan 3.1982 11.6.1983 4.1984 stricken 2000/13
益都 [Yidu] 703   Qingdao SY 8.1981 20.8.1982 12.1982 stricken 2000/13
  704   Qingdao SY 9.1982 22.9.1983 12.1983 stricken 2000/13
成武 [Chengwu] 705   Qingdao SY 9.1982 4.1.1984 3.1984 target 2012
辉南 [Huinan] 706   Qiuxin SY, Jiangnan 11.1983 6.3.1984 12.1984 in service (2019)
怀德 [Huaide] 707   Qiuxin SY, Jiangnan 12.1983 30.3.1984 12.1984 in service (2019)
  708   Chungking SY 8.1983 30.9.1985 1986 stricken 2017
西平 [Xiping] 709   Chungking SY 8.1983 17.11.1985 1986 stricken 2017
隆回 [Longhui] 720   Huangpu SY, Guangzhou     1982 stricken 2000/13
宁乡 [Ningxiang] 721   Huangpu SY, Guangzhou 9.1980 16.1.1982 8.1982 in service (2019)
安化 [Anhua] 722   Huangpu SY, Guangzhou 9.1980 12.8.1982 12.1982 in service (2019)
德庆 [Deqing] 723   Huangpu SY, Guangzhou 10.1982 18.4.1984 10.1984 in service (2019)
徐闻 [Xuwen] 724   Huangpu SY, Guangzhou 10.1982 16.4.1984 12.1984 stricken 2000/13
会同 [Huitong] 725   Huangpu SY, Guangzhou 3.1983 17.9.1984 12.1984 fire ship 2011
电白 [Dianbai] 726   Huangpu SY, Guangzhou 3.1983 15.10.1984 12.1984 stricken 2000/13
吴川 [Wuchuan] 727   Huangpu SY, Guangzhou 8.1983 30.4.1985 10.1985 in service (2019)
镇原 [Zhenyuan] 728   Huangpu SY, Guangzhou 8.1983 26.9.1985 12.1985 stricken 2015
天柱 [Tianzhou] 729   Huangpu SY, Guangzhou 11.1983 15.10.1985 12.1985 stricken 2015
长顺 [Zhangshun] 730   Huangpu SY, Guangzhou 11.1983 31.10.1985 12.1985 stricken 2000/13
汉寿 [Hanshou] 731   Qiuxin SY, Jiangnan 4.1984 3.6.1984 11.1985 stricken 2009
宁远 [Ningyuan] 732   Qiuxin SY, Jiangnan 9.1984 27.12.1984 11.1985 in service (2019)
仙游 [Xianyou] 740   Chungking SY 12.1984 25.12.1987 1988 in service (2019)
泰顺 [Taishun] 741   Chungking SY 12.1984 30.9.1986 1987 stricken 2017
兴国 [Xingguo] 742   Qiuxin SY, Jiangnan 11.1986 28.2.1987 12.1987 in service (2019)
  沪救1   Qiuxin SY, Jiangnan 12.1975 29.2.1976 9.1976 dispatch vessel, stricken 2010s
  滨海409   Qiuxin SY, Jiangnan 12.1977 4.2.1978 9.1978 dispatch vessel, stricken 2010s
  J505   Qiuxin SY, Jiangnan 3.1979 10.6.1979 10.1979 // --- completed as hospital ship
  J303   Qiuxin SY, Jiangnan 4.1979 14.6.1979 3.1980 // --- also as hospital ship, in service (2018)
  J125   Qiuxin SY, Jiangnan 6.1979 8.9.1979 11.1980 // --- also as hospital ship, in service (2018)


Technical data


Displacement standard, t

395

Displacement full, t

430

Length, m

58.8

Breadth, m

7.20

Draught, m

2.24 hull

No of shafts

4

Machinery

4 diesels

Power, h. p.

8800

Max speed, kts

30.5

Fuel, t

diesel oil

Endurance, nm(kts)

1800(14)

Armament

earlier: 2 x 1 - 76/50 Mk 26, 2 x 2 - 25/80 type 61M, 4 x 5 RBU-1200 AWSRL, 2 DCT, 2 DCR, mines

most: 2 x 2 - 57/62 type 66, 2 x 2 - 25/80 type 61M, 4 x 5 type 81 ASWRL, 2 DCT, 2 DCR, mines

Electronic equipment

earlier: Reya radar, Tamir-11 sonar

most: type 351 radar, Tamir-11 sonar

Complement

78



Standard scale images


740 2010
740 2010
676 1980
676 1980


Graphics

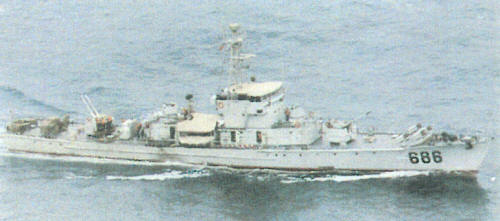

<i>Jiangyin</i> 2001
Jiangyin 2001

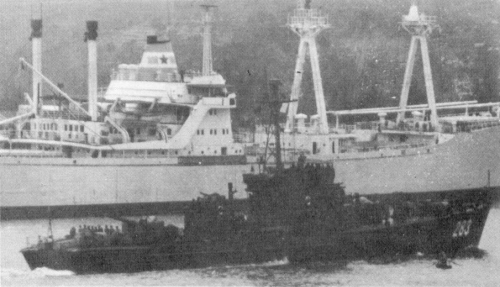

No283 1976
No283 1976


Project history

Developed from the Soviet project 201 but has a considerably larger hull. They are still the standard Chinese large patrol craft, ~67 are in active service in 2016.

Modernizations

None.

Naval service

No significant events.
