'CCPB Mk VI' patrol boats (2014-)





2015

Ships


Names Builders Commissioned Losses Transfers Discarding

48 units

SAFE Boats International, Tacoma: 48 units

2014-2016: 2 units

2017-2018: 10 units

2020-2020s: 36 units (building)

none

none

in service (2020): 12 units

building (2020): 36 units



Technical data


Displacement standard, t47
Displacement full, t65
Length, m

25.9

Breadth, m6.25
Draught, m1.40
No of shafts2 waterjets
Machinery2 MTU 16V2000 M94 diesels
Power, h. p.5200
Max speed, kts41
Fuel, tdiesel oil
Endurance, nm(kts)600(12)
Armament1 x 1 - 25/75 Mk 38 Mod. 2 Bushmaster, 4 x 1 - 12.7/90
Electronic equipmentradar
Complement13

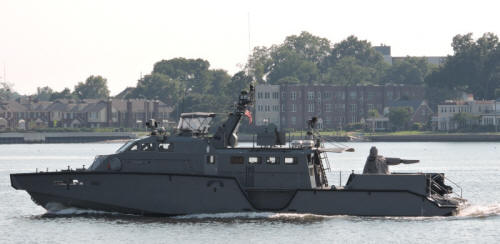

Graphics


2015
2015


Project history

Ordered in 2012 (first 6) and 2014 (6 more) for Naval Expeditionary Combat Command's coastal riverine force. Intended for conducting maritime security operations and coastal security patrol duties. Armament fit includes 2 stabilized gunmounts (1 fwd, 1 aft) for 1 Mk 38 Mod. 2 gun and 1 remotely operated small-arms mount that can support 1 Mk 19 40mm grenade launcher, Mk 44 GAU-17 mini-gun, 12.7mm, 7.62mm or 5.56mm MG. Diesels can burn either marine-grade diesel oil or JP-5 aviation fuel.

Modernizations

None.

Naval service

No significant events.
