ESPADARTE patrol boat (1993)
Espadarte 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P151 Espadarte |
Peterson, Sturgeon Bay, USA: P151 |
1993: P151 |
none |
none |
in service (2020): P151 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 24 |
| Length, m | 15.5 |
| Breadth, m | 4.50 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroiit Diesel 6V92TA diesels |
| Power, h. p. | 900 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(20) |
| Armament | 1 x 2 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 6 |
Graphics

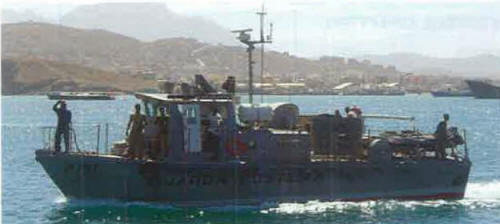

Espadarte 2010
Project history
Peterson 51ft Mk 4 class. Aluminium construction. Carries 4.3m RIB on the stern.
Modernizations
None.
Naval service
: No significant events.
