Đerdap 2013

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
РМЛ331 Нештин [RML331 Neštin] РМЛ332 Мотаjица [RML332 Motajica] РМЛ333 Белегиш [RML333 Belegiš] РМЛ334 Босут [RML334 Bosut] РМЛ335 Вучедол [RML335 Vučedol] РМЛ336 Ђердап [RML336 Đerdap] РМЛ337 Панонско Море [RML337 Panonsko More] РМЛ341 Нови Сад [RML341 Novi Sad] РМЛ342 [RML342]	Brodotehika, Beograd: RML331-337, 341, 342	1975: RML331 1976: RML332 1977: RML333 1978: RML334 1979: RML335 1980: RML336, 337 1996: RML341	incomplete: RML342	none	1997: RML337 2010: RML333, 334 2012: RML331 in service (2019): RML332, 335, 336, 341

Technical data

Displacement standard, t	61
Displacement full, t	78
Length, m	26.9
Breadth, m	6.50
Draught, m	1.08
No of shafts	2
Machinery	2 Torpedo B-539 RM/2 diesels
Power, h. p.	520
Max speed, kts	15
Fuel, t	diesel oil
Endurance, nm(kts)	864(11)
Armament	RML331-337: 1 x 4 Strela-2M SAM (4 9K32M), 1 x 4 - 20/70 M-75, 2 x 1 - 20/70 M-71, 24 R-1 or 12 KMD-2-500 mines, PEAM magnetic/acoustic, AEZ1 explosive, MDL1, MDL2 mechanical minesweeping gear RML341-342: 1 x 4 Strela-2M SAM (4 9K32M), 2 x 4 - 20/70 M-75, 24 R-1 or 12 KMD-2-500 mines, PEAM magnetic/acoustic, AEZ1 explosive, MDL1, MDL2 mechanical minesweeping gear
Electronic equipment	Decca RM-1216 radar
Complement	17

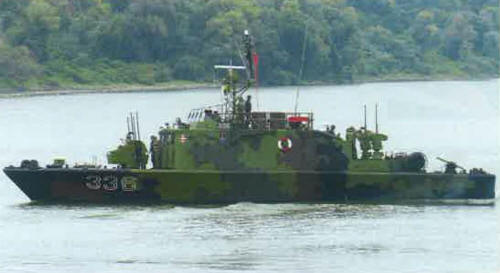

Graphics

Project history

Intended for service on Danube. Light alloy hull.

Modernizations

None.

Naval service

No significant events.
