TANU patrol ship (1968)
Tanu 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Tanu | Yarrow, Esquimalt | 1968 | 7.9.1968 | Coast Guard 4.1995, in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 880 |
|---|---|
| Displacement full, t | 925 |
| Length, m | 50.1 pp 54.7 oa |
| Breadth, m | 9.75 |
| Draught, m | 4.75 |
| No of shafts | 1 |
| Machinery | 2 Fairbanks-Morse 38D81/8x8 diesels |
| Power, h. p. | 2680 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil 200 |
| Endurance, nm(kts) | 5000(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 16 + 16 passengers |
Graphics

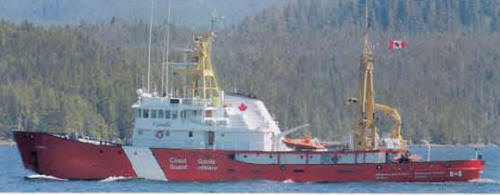

Tanu 2004
Project history
Patrol ship of Department of Fisheries and Oceans.
Modernizations
2000s: - 2 x 1 - 12.7/90, radar; + Raytheon M34, JRC JMA825-9 radars
Naval service
No significant events.
