ALERT patrol ship (1969)





Alert 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Alert, 1998- Ocean Alert     Davie, Luzon     20.11.1969 stricken from Coast Guard 3.1994, Naval Reserve 7.1994-8/1994, to Department of Fisheries 9.1994, to Coast Guard 4.1995, deleted 2000


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Alert, 1998- Ocean Alert     Davie, Luzon     20.11.1969 stricken from Coast Guard 3.1994, Naval Reserve 7.1994-8/1994, to Department of Fisheries 9.1994, to Coast Guard 4.1995, deleted 2000

Technical data


Displacement standard, t
Displacement full, t2164
Length, m71.4
Breadth, m12.1
Draught, m4.94
No of shafts

2
Machinery

4 Fairbanks-Morse 38D81/8-12 diesels-generators, 2 electric motors
Power, h. p.10560
Max speed, kts

18.7
Fuel, t

diesel oil 275
Endurance, nm(kts)6000(14.5)
Armament

1 helicopter (Bo-105CBS or Alouette III)
Electronic equipment2x radars
Complement25


Graphics

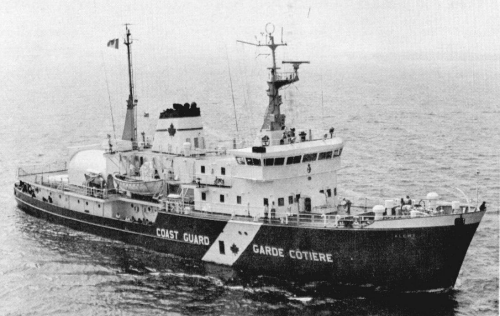

<i>Alert </i>1979
Alert 1979


Project history

Patrol ship of Coast Guard, transferred to Department of Fisheries and Oceans. Was to have been a class of six. Telescoping hangar.

Modernizations

None.

Naval service

No significant events.

© Ivan Gogin, 2018
