L6401 logistics landing craft (1996-1999)

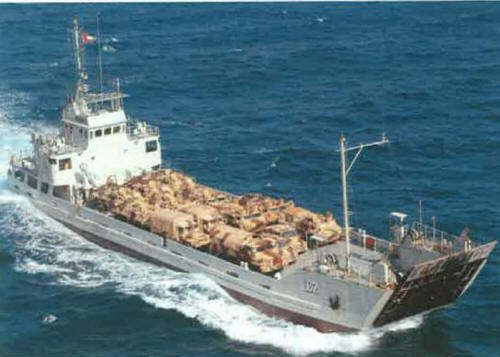

Al Khaznah 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| L6401, 2001- L61 | ADSB, Abu Dhabi | 1996 | in service (2020) | ||||
| الخزنه [Al Khaznah] | L6402, 2001- L62 | ADSB, Abu Dhabi | 1996 | in service (2020) | |||
| L6403, 2001- L63 | ADSB, Abu Dhabi | 1999 | in service (2020) | ||||
| L6404, 2001- L64 | ADSB, Abu Dhabi | 1999 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 850 |
| Length, m | 55.0 pp 64.0 oa |
| Breadth, m | 12.0 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3508 diesels |
| Power, h. p. | 1810 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000 |
| Armament | 2 x 1 - 20/90 Mk 20 Rh202 |
| Military load | 240 t cargo, 56 troops |
| Electronic equipment | Simrad RA-53C radar |
| Complement | 19 |
Graphics
Al Khaznah 2006
Project history
Bow ramp (6.4m length, 60t capacity), 7.5t crane.
Modernizations
None.
Naval service
No significant events.
