ORCA patrol and training craft (2006-2008)

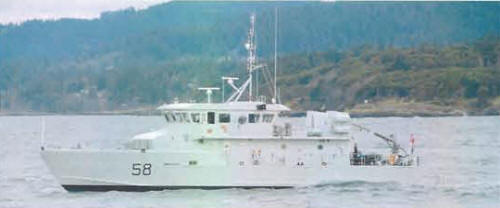

Renard 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Orca | PCT55 | Victoria SY, Esquimalt | 9.11.2006 | in service (2019) | |||
| Raven | PCT56 | Victoria SY, Esquimalt | 15.3.2007 | in service (2019) | |||
| Caribou | PCT57 | Victoria SY, Esquimalt | 31.7.2007 | in service (2019) | |||
| Renard | PCT58 | Victoria SY, Esquimalt | 13.9.2007 | in service (2019) | |||
| Wolf | PCT59 | Victoria SY, Esquimalt | 29.11.2007 | in service (2019) | |||
| Grizzly | PCT60 | Victoria SY, Esquimalt | 19.3.2008 | in service (2019) | |||
| Cougar | PCT61 | Victoria SY, Esquimalt | 2.10.2008 | in service (2019) | |||
| Moose | PCT62 | Victoria SY, Esquimalt | 27.11.2008 | in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 165 |
|---|---|
| Displacement full, t | 210 |
| Length, m | 30.6 pp 33.0 oa |
| Breadth, m | 8.34 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516B diesels |
| Power, h. p. | 5070 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2700(10) |
| Armament | 1 x 1 - 12.7/90 (fitted for) |
| Electronic equipment | 2x Raytheon NSC 1810/6XU radars |
| Complement | 4 + 16 students |
Graphics
Renard 2008
Project history
Intended to replace the YAG300-class training units. A contract for six shipswas awarded in 2005 with an option for two additional ships. Can provide secondary inshore patrol capability.
Modernizations
None.
Naval service
No significant events.
