PAHLAWAN fast attack craft (missile) (1967)

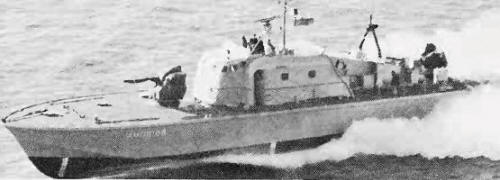

Pahlawan 1968
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Pahlawan | P01 | Vosper, Portsmouth, UK | 1965 | 5.12.1966 | 10.1967 | discarded 1977 |
Technical data
| Displacement standard, t | 95 |
|---|---|
| Displacement full, t | 114 |
| Length, m | 29.3 pp 30.2 oa |
| Breadth, m | 8.00 |
| Draught, m | 2.50 |
| No of shafts | 3 |
| Machinery | CODOG: 3 Bristol gas turbines / 2 General Motors 6V71 diesels (on outer shafts) |
| Power, h. p. | 12750 / 460 |
| Max speed, kts | 50 / 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/70 Bofors 315, 1 x 1 - 20/80 Mk 7 (HS404) |
| Electronic equipment | NWS-1 radar |
| Complement | 20 |
Standard scale images
Pahlawan 1970
Graphics
Pahlawan 1968
Project history
Sister-boat of Danish Søløven class. Resin bonded wooden hull with aluminium alloy superstructure.
Modernizations 5.
1972: + 4 x 2 SS-12M SSM (8 SS-12M)
Naval service
No significant events.
