MUSTAED patrol boat (2011)
Mustaed 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
21 Mustaed |
Marinteknik, Tuas, Singapore: 21 | 2011: 21 |
none |
none |
in service (2020): 21 |
Technical data
| Displacement standard, t | 60 |
|---|---|
| Displacement full, t | |
| Length, m | 27.2 |
| Breadth, m | 6.20 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V2000 M93 diesels |
| Power, h. p. | 4780 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 15 |
Graphics

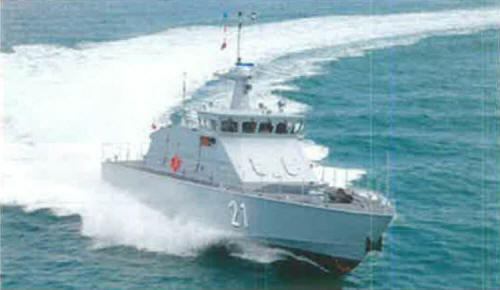

Mustaed 2011
Project history
Lürssen FIB25-2012 design, ordered in 2010 with option for two more boats. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
