Brasil 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate

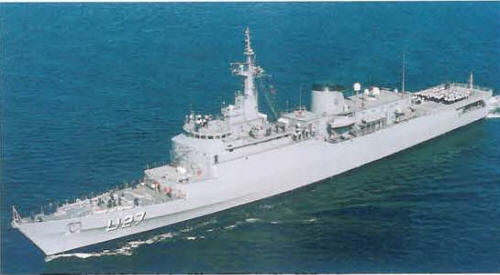

Brasil	U27		Arsenal de Marinha do Rio de Janeiro	18.9.1981	23.9.1983	21.8.1986	in service (2019)

Technical data

Displacement standard, t	2548
Displacement full, t	3729
Length, m	131.3
Breadth, m	13.5
Draught, m	4.21 mean
No of shafts	2
Machinery	2 Ishikawajima do Brasil-Pielstick 6PC2-5L400 diesels
Power, h. p.	7800
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	7000(15)
Armament	2 x 1 - 40/70 Bofors 564, 4 x 1 - 47/40 3pdr saluting, helicopter deck
Electronic equipment	Decca 1230, Decca 1226, Furuno radars, RDL-2ABC ECM suite
Complement	207 + 200 cadets

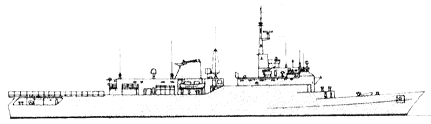

Standard scale images

Graphics

Project history

Uses hull of the Mk 10 frigate design but has less powerful propulsion plant and far simpler weapons and electronics. Has a command center with three remote training command spaces, navigational training compartment for 40 trainees, and two other classrooms. Planned 76mm Oto Melara Compact mount forward was not installed, nor was the planned helicopter hangar, although the helicopter platform can accommodate one Sea King helicopter. There is a single remote TVT-300 optical director for the two 40mm gunmounts.

Modernizations

None.

Naval service

No significant events.
