TRIDENT patrol boat (1981)
Trident 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Trident | P01 | Brooke Marine, Lowestoft, UK | 14.4.1981 | 11.1981 | deleted 2009 |
Technical data
| Displacement standard, t | 156 |
|---|---|
| Displacement full, t | 190 |
| Length, m | 37.5 |
| Breadth, m | 6.86 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Paxman Valenta 12RP200 diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Decca TM12262C radar |
| Complement | 28 |
Graphics

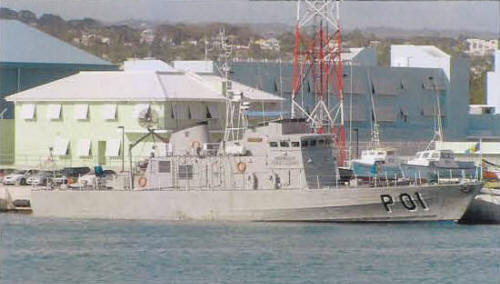

Trident 2008
Project history
Brooke Marine design.
Modernizations
None.
Naval service
No significant events.
