MHV90 Home Guard boats (1973 - 1975)
Holger Danske 2003
Ships
| Name | Yard No | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 1988- Bopa | MHV90 | Svendborg Værft | 8.1973 | 1973 | auxiliary 2010 | ||
| 1988- Brigaden | MHV91 | Svendborg Værft | 9.10.1973 | 3.1974 | stricken 4.2008 | ||
| 1988- Holger Danske | MHV92 | Svendborg Værft | 1.1975 | 3.1975 | stricken 5.2011 | ||
| 1988- Hvidsten | MHV93 | Svendborg Værft | 7.3.1975 | 6.1975 | stricken 4.2008 | ||
| 1988- Ringen | MHV94 | Svendborg Værft | 8.8.1974 | 12.1974 | stricken 3.2009 | ||
| 1988- Speditøren | MHV95 | Svendborg Værft | 3.1975 | 1975 | stricken 10.2008 |
Technical data
| Displacement standard, t | 85 |
|---|---|
| Displacement full, t | 130 |
| Length, m | 19.8 |
| Breadth, m | 5.70 |
| Draught, m | 1.60 |
| No of shafts | 1 |
| Machinery | 1 B&W diesel |
| Power, h. p. | 400 |
| Max speed, kts | 10.7 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno FR-1505DA radar |
| Complement | 6 |
Graphics

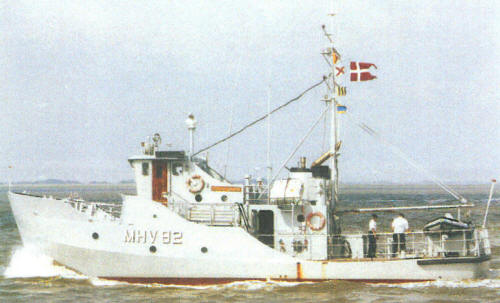

Holger Danske 2003
Project history
Home Guard patrol boats.
Modernizations
None.
Naval service
No significant events.
