DENEB patrol boats (2008-2011)
Mirzam 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ذنب [Deneb] | 334 | Océa, Saint-Nazaire, France | 6.10.2008 | 20.11.2008 | in service (2019) | ||
| ميزر [Mizar] | 335 | Océa, Saint-Nazaire, France | 8.12.2008 | 11.2.2009 | in service (2019) | ||
| القائد [Alkaid] | 336 | Océa, Saint-Nazaire, France | 28.1.2009 | 18.3.2009 | in service (2019) | ||
| الطير [Altair] | 337 | Océa, Saint-Nazaire, France | 26.3.2009 | 20.5.2009 | in service (2019) | ||
| مرفق [Mirfak] | 338 | Océa, Saint-Nazaire, France | 27.4.2009 | 17.6.2009 | in service (2019) | ||
| النير [Alnair] | 339 | Océa, Saint-Nazaire, France | 15.6.2009 | 23.7.2009 | in service (2019) | ||
| كيرنار [Achernar] | 370 | Océa, Saint-Nazaire, France | 15.7.2009 | 3.9.2009 | in service (2019) | ||
| قوس أسترالي [Kaus Australe] | 371 | Océa, Saint-Nazaire, France | 2.9.2009 | 18.11.2009 | in service (2019) | ||
| فمالهة [Fomalhaut] | 372 | Océa, Saint-Nazaire, France | 12.10.2009 | 12.1.2010 | in service (2019) | ||
| مركب [Markab] | 373 | Océa, Saint-Nazaire, France | 23.11.2009 | 11.2.2010 | in service (2019) | ||
| بطلجس [Betelgeuse] | 374 | Océa, Saint-Nazaire, France | 1.3.2010 | 14.4.2010 | in service (2019) | ||
| كيف برلس [Kiffa Borealis] | 375 | Océa, Saint-Nazaire, France | 1.3.2010 | 21.5.2010 | in service (2019) | ||
| حمل [Hamal] | 376 | Océa, Saint-Nazaire, France | 12.4.2010 | 8.7.2010 | in service (2019) | ||
| ذنب الجدي [Deneb Algedi] | 377 | Océa, Saint-Nazaire, France | 17.5.2010 | 2.9.2010 | in service (2019) | ||
| أرنب [Arnab] | 378 | Océa, Saint-Nazaire, France | 1.7.2010 | 7.10.2010 | in service (2019) | ||
| ميرزام [Mirzam] | 379 | Océa, Saint-Nazaire, France | 6.9.2010 | 5.2011 | in service (2019) | ||
| بيسك [Peacock] | 380 | Océa, Saint-Nazaire, France | 22.10.2010 | 1.2011 | in service (2019) | ||
| نيرال زورق [Nairal Zaurak] | 381 | Océa, Saint-Nazaire, France | 22.11.2010 | 6.2011 | in service (2019) | ||
| بليدص [Pleiades] | 382 | Océa, Saint-Nazaire, France | 20.12.2010 | 4.2011 | in service (2019) | ||
| سيريوس [Sirius] | 383 | Océa, Saint-Nazaire, France | 31.1.2011 | 7.2011 | in service (2019) | ||
| لقتل بلير [L'Etoile Polaire] | 384 | Océa, Saint-Nazaire, France | 7.9.2009 | 8.10.2009 | in service (2019) |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 118 |
| Length, m | 31.8 |
| Breadth, m | 6.30 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C32 diesels |
| Power, h. p. | 3660 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(14) |
| Armament | 1 x 1 - 30/75 DS-30B |
| Electronic equipment | 2x Furuno radars |
| Complement | 13 |
Graphics

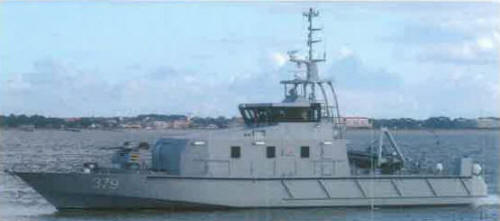

Mirzam 2010
Project history
Océa FPB98 Mk I design, ordered for Coast Guard in 2008. L'Etoile Polaire was modified for VIP duties.
Modernizations
None.
Naval service
No significant events.
