9! PROCION coastal patrol craft (1967-1972)





Bellatrix 1970

Ships


Names Builders Commissioned Losses Transfers Discarding

GC103 Procion

GC104 Aldebarán

GC106 Bellatrix

GC108 Capella

Sewart Seacraft, Berwick, USA: GC103, 104, 106, 108

1967: GC103, 106

1968: GC108

1972: GC104

none

none

in service (2019): GC103, 104, 106, 108



Technical data


Displacement standard, t
Displacement full, t

60

Length, m

25.9

Breadth, m

5.70

Draught, m

2.10

No of shafts

2

Machinery

2 General Motors 16V71N diesels

Power, h. p.

1400

Max speed, kts

21.7

Fuel, t

diesel oil

Endurance, nm(kts)

800(20)

Armament

3 x 1 - 12.7/90

Electronic equipmentradar
Complement

19



Graphics

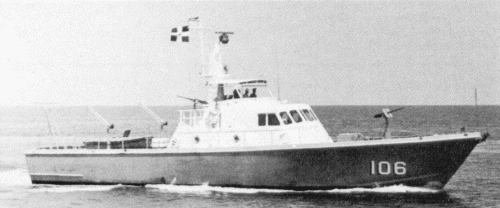

<i>Bellatrix </i>1970
Bellatrix 1970


Project history

US 86ft Commercial Cruiser class.

Modernizations

1980s, all: - old radar; + SPS-64 radar

Naval service

No significant events.
