Mourad Rais 2011

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
مراد رئس [Mourad Rais] (ex-СКР-482 [SKR-482])	901	250	Gorkiy Yd, Zelenodolsk, USSR	10.6.1978	12.1.1980	30.9.1980 // 20.12.1980	in service (2019)
رئس كلش [Rais Kellich] (ex-СКР-35 [SKR-35])	902	252	Gorkiy Yd, Zelenodolsk, USSR	11.6.1980	30.4.1981	30.11.1981 // 24.3.1982	in service (2019)
رئس قرف [Rais Korfu] (ex-СКР-129 [SKR-129])	903	254	Gorkiy Yd, Zelenodolsk, USSR	7.7.1982	11.11.1983	30.8.1984 // 1.1985	in service (2019)

Technical data

Displacement standard, t	1520
Displacement full, t	1900
Length, m	96.5
Breadth, m	12.6
Draught, m	3.32 hull 5.74 max
No of shafts	3
Machinery	1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts)
Power, h. p.	20000 + 16000 = 36000
Max speed, kts	29
Fuel, t	diesel oil
Endurance, nm(kts)	4000(14)
Armament	1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines
Electronic equipment	MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite
Complement	108

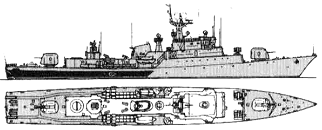

Standard scale images

Graphics

Project history

Soviet export project 1159T light frigates.

Modernizations

2000, Rais Korfu: as project 1159TM: - 2 x 2 - 30/71, MR-320 Topaz-2V, MR-104 Rys' radars; + 2 x 6 - 30/54 AK-630M, 2 x 2 - 533 TT, Pozitiv-ME1, 2x MR-123 Vympel-A radars

2011, Mourad Rais; 2012, Rais Kellich: - NR-320Topaz-2V, MR-105 Turel', MR-104 Rys' radars; + Pozitiv-ME1 radar, 2x SP-521 Rakurs e/o systems, 2x PK-16 decoy RL

Naval service

Rais Korfu was damaged by explosion during refit and modernization at St. Petersburg, Russia, in December 2015 and returned to service in March 2017.
