JOUMHOURIA patrol boats (2012-2015)
Joumhouria 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P202 جمهورية [Joumhouria] P203 الجلة [Al Jala] P204 رمادا [Remada] P208 ساقية سيدي يوسف [Sakiet Sidi Youssef] P209 قرقنة [Kerkennah] P210 دستور [Destour] |
CN Vittoria, Adria, Italy: P202-204, 208-210 |
2012: P202 2014: P203, 204 2015: P208-210 |
none |
none |
in service (2019): P202-204, 208-210 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 80 |
| Length, m | 27.3 |
| Breadth, m | 6.70 |
| Draught, m | |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 12V400 M84 diesels |
| Power, h. p. | 4900 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(15) |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | nav. radar |
| Complement | 14 |
Graphics

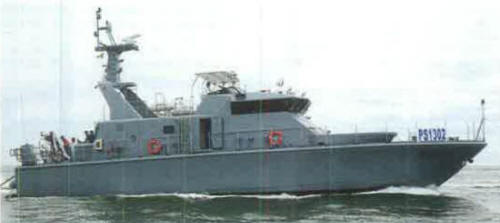

Joumhouria 2013
Project history
Aluminium construction. P270 design.
Modernizations
None.
