NAVYPEDIA


1970

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
42 boats, presumably HQ6500-...	USA: 42 boats	1944-1945 // 1969-1970: 42 boats	unknown 42 boats (to North Vietnam 1975)	none	unknown

Technical data

Displacement standard, t
Displacement full, t	80 - 90
Length, m	18.5
Breadth, m	5.34
Draught, m	1.07
No of shafts	2
Machinery	2 diesels
Power, h. p.
Max speed, kts	9
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 105/22 M101A1, 2 x 1 - 20/70 Mk 10, 3 x 1 - 7.6/90, 2 x 1 - 40/10 M18 grenade launchers
Electronic equipment	radar
Complement	11

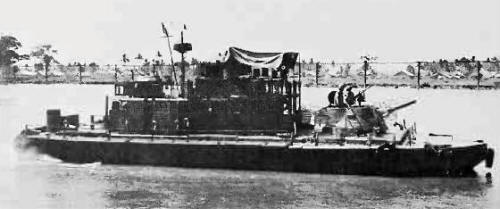

Graphics

Project history

River monitors (MON), presumably converted from LCM(6) hulls.

Modernizations

None.

Naval service

No significant events.
