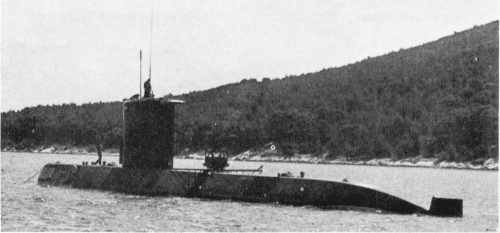

Sava 1979

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Сава [Sava]	П831 [P831]		BSO Split	1975	1977	1978	stricken 1999
Драва [Drava]	П832 [P832]		BSO Split	1978	1981	1982	stricken 2002

Technical data

Displacement standard, t
Displacement normal, t	770 / 964
Length, m	55.8
Breadth, m	7.20
Draught, m	5.50
No of shafts	1
Machinery	2 Sulzer diesel-generators, 1 electric motor
Power, h. p.	1600 / 1560
Max speed, kts	10 / 16
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	6 - 533 TT (bow, 10 type 53 or Tp61 or 20 mines)
Electronic equipment	Flag radar, PRS-3 sonar suite, Nakat ECM suite
Complement	35
Diving depth operational, m	300

Standard scale images

Graphics

Project history

Improved Heroj with high degree of automation. Some sources say about Soviet MG-15 Herkules and MG-10 Feniks-M sonars instead of PRS-3.

Modernizations

None.

Naval service

No significant events.
