Taku

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Taku (ex-Hai Lung)			Schichau, Elbing, Germany	1897	1898	7/1898 // 6.1900	sold 10.1916

Technical data

Displacement normal, t	280
Displacement full, t	305
Length, m	59.1
Breadth, m	6.40
Draught, m	1.95
No of shafts	2
Machinery	2 VTE, 4 Schulz-Thornycroft boilers
Power, h. p.	6000
Max speed, kts	30
Fuel, t	coal 67
Endurance, nm(kts)	2000(10)
Armament	6 x 1 - 47/30 21/2pdr Hotchkiss Mk I, 2 x 1 - 356 TT
Complement	58

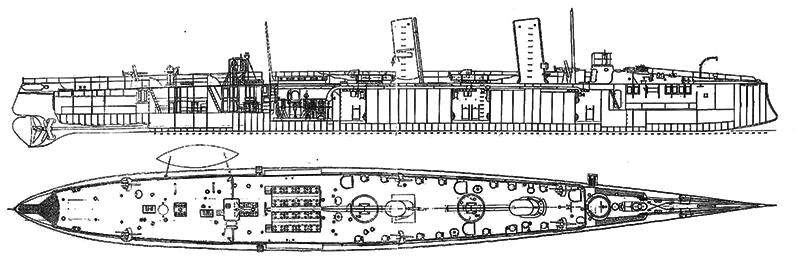

Graphics

Project history

A Schichau destroyer built for China, this vessel was captured at Taku 17.6.1900 with the sisters which were allocated to Germany, Russia and France, by Roger Keyes. Though reputed to have done 32kts on trial when first completed her service speed was well below this, and she did not compare very well with contemporary British destroyers. Her accommodation was particularly bad. She spent her life on the China station.

Modernizations

None.

Naval service

No significant events.
