J12 patrol craft (1961-1962)

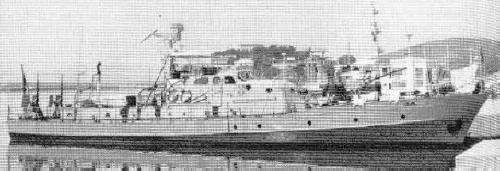

SG15 1982
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
J12, 1981- SG12 J13, 1981- SG13, 2002- SG113 J14, 1981- SG14, 2002- SG114 J15, 1981- SG15, 2002- SG115 J16, 1981- SG16, 2002- SG116 J17, 1981- SG17 J18, 1981- SG18, 2002- SG118 J19, 1981- SG19, 2002- SG119 J20, 1981- SG20, 2002- SG120 |
Schweers, Bardenfleth, West Germany: J12-20 |
1961: J12-15 1962: J16-20 |
None |
none |
early 1980s: SG17 2004: SG112 2008-2012: SG113-116, 118-120 |
Technical data
| Displacement standard, t | 60 |
|---|---|
| Displacement full, t | 70 |
| Length, m | 28.9 |
| Breadth, m | 4.70 |
| Draught, m | 1.42 |
| No of shafts | 2 |
| Machinery | 2 MTU 12-cyl. diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil 8 |
| Endurance, nm(kts) | 1500(19) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement | 15 |
Standard scale images
J12 1970
Graphics
SG15 1982
Project history
German KW15 class.
Modernizations
None.
Naval service
No significant events.
