ATILAY submarines (1976-1989)

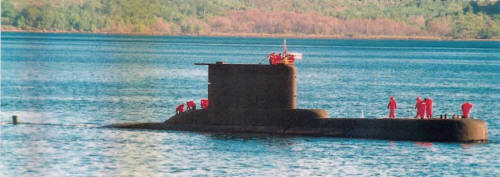

Yıldıray 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Atılay S347   Howaldtswerke, Kiel, West Germany 2.8.1972 23.10.1974 12.3.1976 stricken 11.2016
Saldıray S348   Howaldtswerke, Kiel, West Germany 2.1.1973 14.2.1975 15.1.1977 stricken 11.2014
Batıray S349   Howaldstwerke, Kiel, West Germany 11.6.1975 24.10.1977 7.11.1978 in service (2019)
Yıldıray S350   Gölçuk NSY, Kocaeli, Izmir 1.5.1976 20.7.1979 20.7.1981 in service (2019)
Doğanay S351   Gölçuk NSY, Kocaeli, Izmir 21.3.1980 16.11.1983 16.11.1984 in service (2019)
Dolunay S352   Gölçuk NSY, Kocaeli, Izmir 16.11.1983 22.7.1988 29.7.1989 in service (2019)


Technical data


Displacement standard, t1000
Displacement normal, t

1180 / 1285
Length, m

56.1
Breadth, m

6.20
Draught, m

5.50
No of shafts

1
Machinery

4 MTU 12V493 AZ80 diesel-generators, 1 Siemens electric motor
Power, h. p.

2400 / 5000
Max speed, kts

11 / 22
Fuel, t

diesel oil 185
Endurance, nm(kts)7800(8) / 400(4)
Armament

8 - 533 TT (bow, 14 SUT, SST-4, Mk 37 Mod.2)
Electronic equipment

S347, 348: Calypso-II radar, CSU-3 sonar suite (AN526, AN402AS, DUUX-2 sonars), DR-2000 ECM suite, M8 CCS

S349-352: Calypso-II radar, CSU-3 sonar suite (AN526, AN402AS, DUUX-2 sonars), Porpoise ECM suite, SINBADS CCS
Complement

38
Diving depth operational, m

250


Standard scale images


<i>Atılay </i>1990
Atılay 1990


Graphics


<i>Yıldıray </i>2002
Yıldıray 2002


Project history Type 209/1200. Similar to the Type 209 German-designed submarines serving in the Greek and several South American navies. A single hull, medium-sized design capable

Type 209/1200. Similar to the Type 209 German-designed submarines serving in the Greek and several South American navies. A single hull, medium-sized design capable of diving to 250m. A total of twelve was orginally planned, with the first three built in Germany and later units in Turkey with German technical assistance.

Modernizations

1999-2000, Atılay, Saldıray: - DR-2000 ECM suite; + Sealion ECM suite

2012-2016, Doğanay, Dolunay: + Ares-2N ECM suite, ability to launch Mk 48 Mod.6AT ADCAP torpedoes

Naval service

No significant events.
