KILIÇ fast attack craft (missile) (1998-2010)

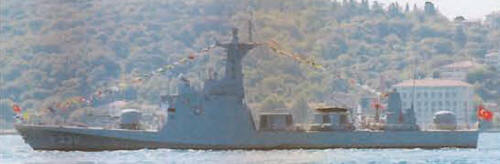

Kılıç 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kılıç P330   Lürssen, Vegesack, Germany 1996 15.7.1997 24.7.1998 in service (2019)
Kalkan P331   Taşkizak NSY, Istanbul 5.7.1996 22.9.1998 22.7.1999 in service (2019)
Mızrak P332   Taşkizak NSY, Istanbul 1997 5.4.1999 8.6.2000 in service (2019)
Tufan P333   Lürssen, Vegesack, Germany 25.7.2001 24.2.2003 26.7.2005 in service (2019)
Meltem P334   Pendik NSY, Istanbul 25.7.2001 1.9.2004 26.7.2005 in service (2019)
İmbat P335   Pendik NSY, Istanbul 25.7.2002 26.7.2005 7.7.2006 in service (2019)
Zıpkın P336   Pendik NSY, Istanbul 2003 27.9.2006 17.9.2007 in service (2019)
Atak P337   Pendik NSY, Istanbul 2005 4.1.2008 14.10.2009 in service (2019)
Bora P338   Pendik NSY, Istanbul 2006 23.5.2009 7.4.2010 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Kılıç P330   Lürssen, Vegesack, Germany 1996 15.7.1997 24.7.1998 in service (2019) Kalkan P331   Taşkizak NSY, Istanbul 5.7.1996 22.9.1998 22.7.1999 in service (2019) Mızrak P332   Taşkizak NSY, Istanbul 1997 5.4.1999 8.6.2000 in service (2019) Tufan P333   Lürssen, Vegesack, Germany 25.7.2001 24.2.2003 26.7.2005 in service (2019) Meltem P334   Pendik NSY, Istanbul 25.7.2001 1.9.2004 26.7.2005 in service (2019) İmbat P335   Pendik NSY, Istanbul 25.7.2002 26.7.2005 7.7.2006 in service (2019) Zıpkın P336   Pendik NSY, Istanbul 2003 27.9.2006 17.9.2007 in service (2019) Atak P337   Pendik NSY, Istanbul 2005 4.1.2008 14.10.2009 in service (2019) Bora P338   Pendik NSY, Istanbul 2006 23.5.2009 7.4.2010 in service (2019)

Technical data


Displacement standard, t

440
Displacement full, t

550
Length, m

58.7 pp 62.4 oa
Breadth, m

8.60
Draught, m

2.80
No of shafts

4
Machinery

4 MTU 16V956 TB91 diesels
Power, h. p.

23300
Max speed, kts

38
Fuel, t

diesel oil
Endurance, nm(kts)

3300(16)
Armament

2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40
Electronic equipment

P330-332: MW-08, Sting, type 1007 radars, LIOD Mk 2 e/o system, Cutlass ECM suite, 2x SRBOC Mk 36 decoy RL, TACTICOS IV CCS

P333-338: MW-08, Sting, Scout, LIROD radars, Cutlass ECM suite, 2x SRBOC Mk 36 decoy RL, STACOS CCS
Complement

44


Standard scale images


<i>Kılıç </i>2010
Kılıç 2010
<i>Tufan </i>2010
Tufan 2010


Graphics


<i>Kılıç </i>2008
Kılıç 2008
<i>Tufan </i>2005
Tufan 2005


Project history

Enlarged version of the FPB 57 design, type FPB 57-052B, with an integrated weapons-control system and new electronics. Were initially fitted with bulwarks at the bow, removed after builder's trials. Usually carry only four Harpoon missiles.

Modernizations

None.

Naval service

No significant events.
