SG43 1984

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
J41 - 50, 1981- SG41 - 50	USA: J41-50	1940s // 1950s: J41-50	None	North Cyprus, early 1990s: SG48, 49	late 1990s: SG41-43, 45, 47, 50 early 2000s: SG44, 46

Technical data

Displacement standard, t
Displacement full, t	15
Length, m	13.9
Breadth, m	4.17
Draught, m	1.10
No of shafts	2
Machinery	2 Gray Marine 64HN9 diesels
Power, h. p.	450
Max speed, kts	18
Fuel, t	diesel oil
Endurance, nm(kts)	200(18)
Armament	1 x 2 - 7.6/90
Electronic equipment	radar
Complement	5

Graphics

Project history

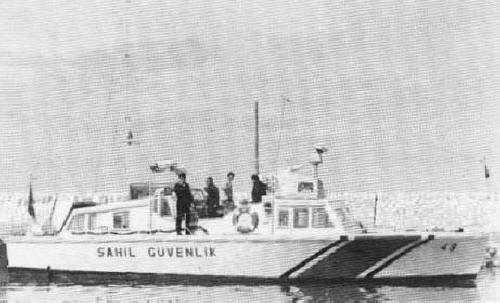

Ex-US 45-ft Picket Boats. Wooden hull.

Modernizations

None.

Naval service

No significant events.
