CHAWENGSAK SONGKRAM patrol craft (1973)
Chawengsak Songkram 1990
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| เชวงศักดิ์สงคราม [Chawengsak Songkram] | 1102 | Yokohama Yacht, Japan | 13.4.1973 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 190 |
| Length, m | 35.5 pp 37.0 oa |
| Breadth, m | 6.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 4 Ikegai diesels |
| Power, h. p. | 5400 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement | 16 |
Graphics

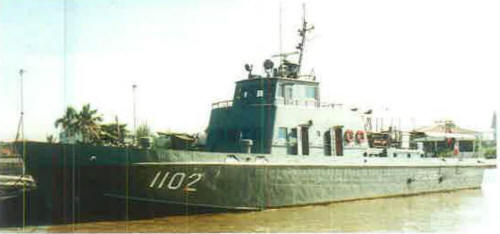

Chawengsak Songkram 1990
Project history
Large patrol boat.
Modernizations
None.
Naval service
No significant events.
