BURESPADOOGKIT patrol boat (1995)
Burespadoongkit 1999
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
813 ชุดเรือนสปา [Burespadoongkit] |
Tecnautic, Bangkok: 813 |
1995: 813 |
813 (tsunami 26.12.2004) |
None |
None |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 65 |
| Length, m | 24.5 |
| Breadth, m | 5.90 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 SACM UD23V12M50 diesels |
| Power, h. p. | 2535 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 650(20) |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 14 |
Graphics

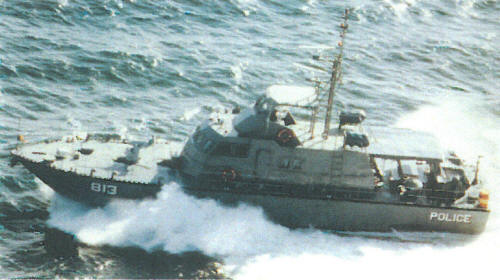

Burespadoongkit 1999
Project history
Medium patrol boat.
Modernizations
None.
Naval service
No significant events.
