SRIYANONT patrol boat (1986)
Sriyanont 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
901 ศรีญานนท์ [Sriyanont] |
ItalThai Marine, Bangkok: 901 |
1986: 901 |
None |
None |
in service (2019): 901 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 52 |
| Length, m | 27.4 |
| Breadth, m | 4.90 |
| Draught, m | 2.00 |
| No of shafts | 2 |
| Machinery | 2 Deutz SBA16 M816CH diesels |
| Power, h. p. | 2680 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 14 |
Graphics

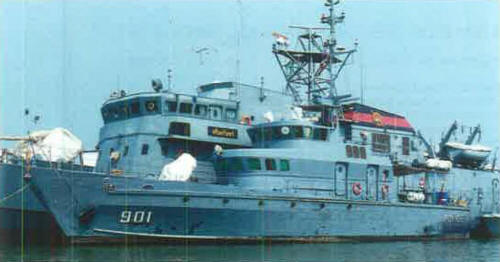

Sriyanont 2001
Project history
Medium patrol boat.
Modernizations
None.
Naval service
No significant events.
