SIAM / THAILAND
NON-NAVAL FORCES
630 patrol boats (1994-1996)
634 2004
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
630-637 |
Marsun, Bangkok: 630-637 |
1994-1996: 630-637 |
None |
None |
in service (2019): 630-637 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 38 |
| Length, m | 20.0 |
| Breadth, m | 5.60 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MAN D2840LXE diesels |
| Power, h. p. | 1640 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 11 |
Graphics

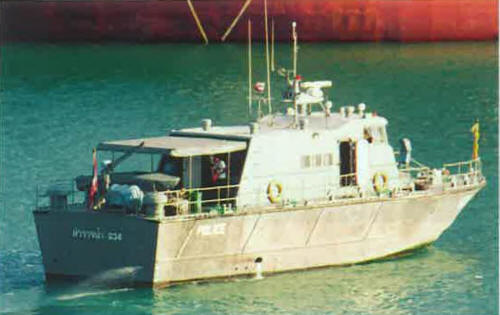

634 2004
Project history
Small patrol boats.
Modernizations
None.
Naval service
No significant events.
