T994 patrol craft (2011)
Tor 994 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ต.994 [Tor 994] | 994 | Naval D Yd, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) | ||
| ต.995 [Tor 995] | 995 | Marsun, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) | ||
| ต.996 [Tor 996] | 996 | Marsun, Bangkok | 11.7.2011 | 26.9.2011 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 215 |
| Length, m | 41.5 |
| Breadth, m | 7.20 |
| Draught, m | 1.85 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 29.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(13) |
| Armament | 1 x 1 - 30/80 DS-30B, 1 x 1 - 12.7/90 |
| Electronic equipment | Sperry, Furuno radars, Mirador e/o system, TACTICOS CCS |
| Complement | 30 |
Graphics

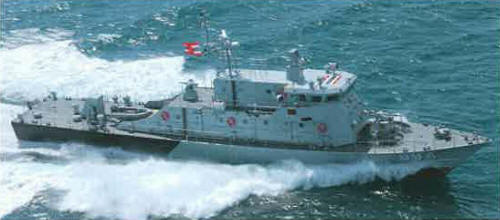

Tor 994 2012
Project history
Enlarged version of T991 class, ordered in 2008. Steel hull with aluminium superstrusture.
Modernizations
None.
Naval service
No significant events.
