BANGRACHAN minelayers (1936-1937)

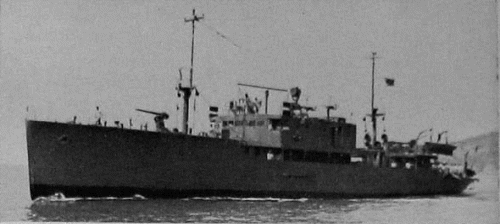

Bangrachan 1950

Ships


Name No Yard No Builder Laid down Launched Comm Fate
บางระจัน [Bangrachan] 1   CRDA, Monfalcone, Italy 1935 1936 1936 stricken 7.1980
หนองสาหร่าย [Nangsarai] 2   CRDA, Monfalcone, Italy 1935 22.7.1936 1937 stricken 7.1980


Technical data


Displacement standard, t

368
Displacement full, t

408
Length, m

50.0 pp
Breadth, m

7.69
Draught, m

2.20
No of shafts

2
Machinery

2 Burmeister & Wain diesels
Power, h. p.

540
Max speed, kts

13
Fuel, t

diesel oil 34
Endurance, nm(kts)

2700(12)
Armament

2 x 1 - 76/40 Ansaldo 1917, 142 mines
Complement55


Standard scale images


<i>Bangrachan</i> 1937
Bangrachan 1937
<i>Bangrachan </i>1960
Bangrachan 1960


Graphics


<i>Bangrachan</i> 1950
Bangrachan 1950


Project history

Purpose-built minelayers. They were ordered in Italy under the 1935 programme. 1935 Despite the modest dimensions, they had good seaworthiness and considerable mine capacity. Mines were carried on two rails on upper deck at all ship length.

Modernizations

early 1950s, both: + 2 x 1 - 20/70 Mk 10

1960s, both presumably: + radar

Naval service

Both ships served more than 40 years.
