NO1 torpedo boats (1908-1913)

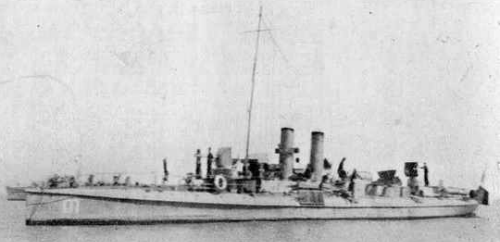

No3 1932
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| หมายเลข 1 [No1] | Kawasaki, Kobe, Japan | 1907 | 9.5.1908 | 1908 | stricken 4.1933 | ||
| หมายเลข 2 [No2] | Kawasaki, Kobe, Japan | 1907 | 9.5.1908 | 1908 | stricken 1.1937 | ||
| หมายเลข 3 [No3] | Kawasaki, Kobe, Japan | 1907 | 14.5.1908 | 1908 | stricken 1.1937 | ||
| หมายเลข 4 [No4] | Kawasaki, Kobe, Japan | 1912 | 19.4.1913 | 1913 | stricken 9.1937 |
Technical data
| Displacement normal, t | 89 |
|---|---|
| Displacement full, t | ~100 |
| Length, m | 40.1 pp 41.1 oa |
| Breadth, m | 4.90 |
| Draught, m | 2.10 |
| No of shafts | 1 |
| Machinery | 1 VTE, 2 Kampon watertube boilers |
| Power, h. p. | 1200 |
| Max speed, kts | 23 |
| Fuel, t | oil 19 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 57/40 Hotchkiss, 1 x 1 - 47/40 Hotchkiss, 2 x 1 - 450 TT |
| Complement | 24 - 29 |
Standard scale images
No1 1933
Graphics
No3 1932
Project history
Kawasaki-Normand type. Sister-ships of Chinese torpedo boats of Hu Peng class, but with purely oil-firing boilers.
Modernizations
None.
Naval service
No significant events.
