SATTAHIP patrol craft (1983-1986)

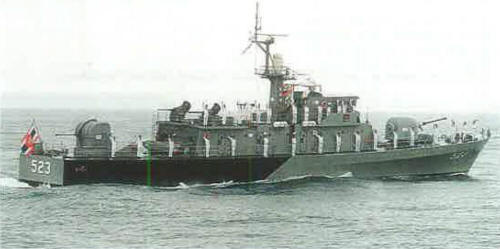

Takbai 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| สัตหีบ [Sattahip] | 4, 1992- 521 | ItalThai, Bangkok | 27.7.1983 | 16.9.1983 | in service (2019) | ||
| คลองใหญ่ [Klongyai] | 5, 1992- 522 | ItalThai, Bangkok | 9.3.1984 | 7.5.1984 | in service (2019) | ||
| ตากใบ [Takbai] | 6, 1992- 523 | ItalThai, Bangkok | 25.5.1984 | 17.7.1984 | in service (2019) | ||
| กันตัง [Kantang] | 7, 1992- 524 | ItalThai, Bangkok | 26.10.1984 | 14.10.1985 | in service (2019) | ||
| เทพา [Thepa] | 8, 1992- 525 | ItalThai, Bangkok | 1985 | 17.4.1986 | in service (2019) | ||
| ท้ายเหมือง [Taimuang] | 9, 1992- 526 | ItalThai, Bangkok | 12.1985 | 17.4.1986 | in service (2019) |
Technical data
| Displacement standard, t | 270 |
|---|---|
| Displacement full, t | 300 |
| Length, m | 47.2 wl 50.1 oa |
| Breadth, m | 7.30 |
| Draught, m | 1.58 hull 1.80 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 TB91 diesels |
| Power, h. p. | 6840 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil 80 |
| Endurance, nm(kts) | 2500(15) |
| Armament | 521-523: 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 524-526: 1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | 521-523: Decca 1226 radar, NA-18 e/o director 524-526: Decca 1226 radar |
| Complement | 56 |
Graphics
Takbai 1999
Project history
Lürssen PSMM Mk 5 desin, ordered in 1981 (first 4), 1983 and 1984.
Modernizations
None.
Naval service
No significant events.
