SRINAKARIN patrol ship (1992)
Srinakarin 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ศรีนครินทร์ [Srinakarin] | 1804 | ItalThai, Bangkok | 4/1992 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 630 |
| Length, m | 56.7 pp 62.0 oa |
| Breadth, m | 8.26 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Deutz-MWM BV16M628 diesels |
| Power, h. p. | 9525 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(15) |
| Armament | 1 x 1 - 30/82 OTO-Breda 564, 2 x 1 - 20/90 GAM-B01 |
| Electronic equipment | 2x Decca 1226 radars |
| Complement | 57 |
Graphics

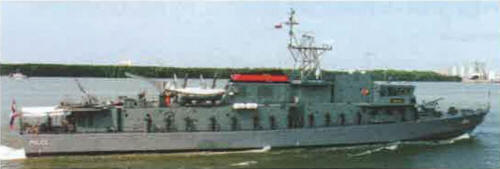

Srinakarin 2003
Project history
Simplified version of Navy's Khamronsin class. Second ship, ordered in 1991, was later cancelled.
Modernizations
None.
Naval service
No significant events.
