PRABPARAPAK fast attack craft (missile) (1976-1977)

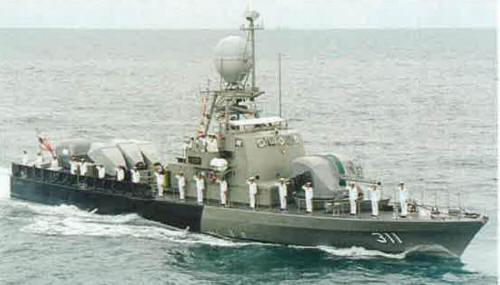

Prabparapak 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ปราบปรปักษ์ [Prabparapak] | 1, 1992- 311 | Singapore SB, Jurong, Singapore | 29.7.1975 | 28.7.1976 | in service (2019) | ||
| หาญหักศัตรู [Hanhak Sattru] | 2, 1992- 312 | Singapore SB, Jurong, Singapore | 28.10.1975 | 6.11.1976 | in service (2019) | ||
| สู้ไพรินทร์ [Suphairin] | 3, 1992- 313 | Singapore SB, Jurong, Singapore | 20.2.1976 | 1.2.1977 | in service (2019) |
Technical data
| Displacement standard, t | 224 |
|---|---|
| Displacement full, t | 260 |
| Length, m | 45.4 |
| Breadth, m | 7.40 |
| Draught, m | 2.10 hull 2.40 propellers |
| No of shafts | 4 |
| Machinery | 4 MTU 16V538 TB92 |
| Power, h. p. | 14400 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(16) |
| Armament | (1 x 3 + 2 x 1) Gabriel I SSM (5 Gabriel I), 1 x 1 - 57/70 Bofors SAK-57 Mk 1, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca TM626, WM-28 radars, RDL-2 ECM suite |
| Complement | 41 |
Graphics
Prabparapak 2001
Project history
Similar to the Singapore's Lürssen-designed boats, built under license. Ordered in June 1973. Usually only three SSMs are carried.
Modernizations
2010s, all: - Decca TM626 radar; + Kelvin Hughes 17 radar
Naval service
No significant events.
