FIGHTING SHIPS OF THE WORLD
SIAM / THAILAND
COASTAL FORCES
NO1 motor torpedo boats (1922)
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
หมายเลข 1 - 5 [No1 - 5] |
Thornycroft, Hampton: No1 - 5 |
1922: No1 - 5 |
None |
None |
1939: No1 - 5 |
Technical data
| Displacement standard, t | 11 |
|---|---|
| Displacement full, t | 14 |
| Length, m | 16.8 |
| Breadth, m | 3.40 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 Thornycroft petrol engines |
| Power, h. p. | 750 |
| Max speed, kts | 37 |
| Fuel, t | petrol 2.2 |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.7/94, 2 - 450 TT |
| Complement | 3 - 5 |
Standard scale images

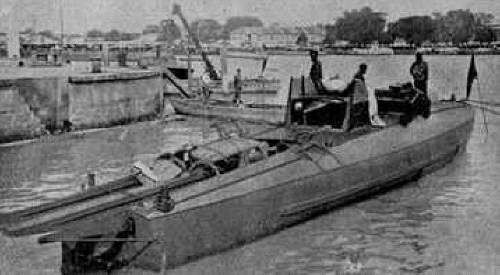

No1 1922
Graphics
Project history
Standard 55ft Thornycroft CMBs. Wooden-hulled.
Modernizations
None.
Naval service
No significant events.
