Tor 231 1986

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
ต.231 [Tor 231]	Tecnautic, Prapradaeng, Bangkok: Tor 231	1986: Tor 231	None	None	2003-05: Tor 231

Technical data

Displacement standard, t
Displacement full, t	41
Length, m	18.3
Breadth, m	6.57
Draught, m	1.61 propellers
No of shafts	2
Machinery	2 MWM TBD234V-12 diesels
Power, h. p.	1640
Max speed, kts	31
Fuel, t	diesel oil
Endurance, nm(kts)	500(26)
Armament	1 x 3 - 20/76 Sea Vulcan
Electronic equipment	radar, SV-20NCS e/o director
Complement	10

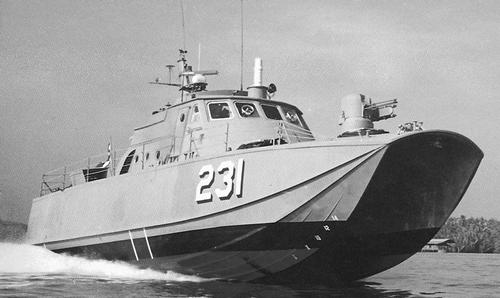

Graphics

Project history

Hysucat 18 design, ordered 23.9.1985. Exceeded the designed displacement by 5.5 tons due to water seepage between the Kevlar outer sheathing and foam-core inner hull wall and failed to make 36-kt contract speed; plans to acquire 12 more were canceled. The design employs catamaran hulls with fixed foils mounted between them.

Modernizations

1988: - 1 x 3 - 20/76, SV-20NCS e/o system; + 1 x 1 - 20/90 GAM-B01

Naval service

No significant events.
