PP5001 patrol boats (1991-2000)

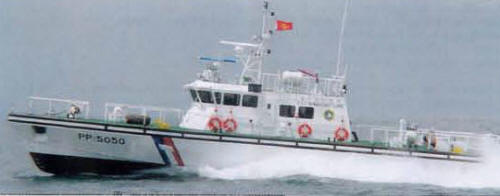

PP5050 2008

Ships


Names Builders Completed Losses Transfers Discarding

1st series:

PP5001-5003

PP5005-5008

PP5010-5013

PP5015, 5016

2nd series:

PP5017, 2000- 海瀛 [Hai Ying]

PP5019, 2000- 海東 [Hai Tung]

PP5020, 2000- 海克 [Hai Ko]

PP5021, 2000- 海達 [Hai Ta]

PP5022, 5023

PP5025-5032

3rd series:

PP5033

PP5035

PP5037-5039

PP5050-5053

Lung-Teh SB, Dong Shan: PP5001-5003, 5005-5008, 5010-5013, 5015, 5016, 5033, 5035, 5037-5039, 5050-5053

TC Yachts, Taipei: PP5017, 5019-5023, 5025-5032

1991-1993: PP5001-5003, 5005-5008, 5010-5013, 5015, 5016

2000: PP5017, 5019-5023, 5025-5032

2004-2005: PP5033, 5035, 5037-5039, 5050-5053

none

none

2010s: PP5003, 5005, 5007, 5008, 5010-5013, 5015, 5016

2017-18: PP5022, 5023, 5026

in service (2019): P5001, 5002, 5006, 5025, 5027-5033, 5035, 5037-5039, 5050-5053

Customs service (2019): Hai Ying, Hai Tung, Hai Ko, Hai Ta



Technical data


Displacement standard, t
Displacement full, t52
Length, m

26.4

Breadth, m

6.20

Draught, m1.10
No of shafts

4 waterjets

Machinery

2 MAN 2842LE 410 diesels

Power, h. p.

4400

Max speed, kts

37

Fuel, t

diesel oil

Endurance, nm(kts)600(22)
Armament

1 x 1 - 12.7/90

Electronic equipment

2x radars

Complement17


Graphics

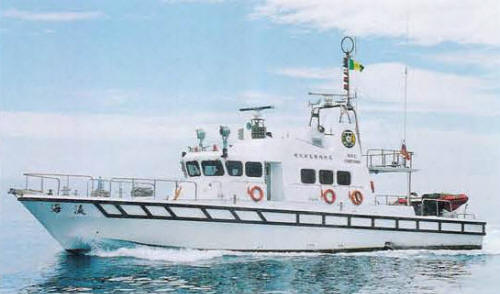

<i>Hai Ko </i>2000
Hai Ko 2000
PP5050 2008
PP5050 2008


Project history

Steel hull.

Modernizations

None.

Naval service

Four boats were transferred to customs in December 2000.
