PP3002 patrol boats (1995-1996)

HOME

FIGHTING SHIPS OF THE WORLD

TAIWAN

NON-NAVAL FORCES


PP3007 2008

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
PP3002, 3003 PP3005-3007 PP3009 PP3011, 3012 PP3015-3019	Lung-Teh SB, Dong Shan: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019	1995-1996: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019	none	none	2015: PP3002, 3003, 3005, 3006, 3009, 3011, 3012, 3015-3019 2017-18: PP3007

Names

Builders

Completed

Losses

Transfers

Discarding

PP3002, 3003

PP3005-3007

PP3009

PP3011, 3012

PP3015-3019

Lung-Teh SB, Dong Shan: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019

1995-1996: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019

none

2015: PP3002, 3003, 3005, 3006, 3009, 3011, 3012, 3015-3019

2017-18: PP3007

Technical data

Displacement standard, t	29
Displacement full, t	30
Length, m	16.0 pp 20.0 oa
Breadth, m	4.80
Draught, m	0.72
No of shafts	3
Machinery	3 MAN 2842 LE402 diesels
Power, h. p.	3300
Max speed, kts	45
Fuel, t	diesel oil
Endurance, nm(kts)	600(33)
Armament	1 x 1 - 12.7/90
Electronic equipment	2x Furuno radars
Complement	8

Graphics

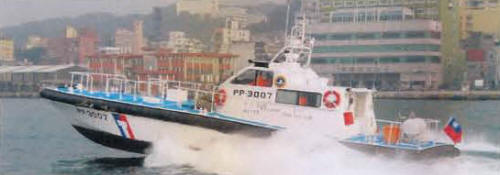

PP3007 2008

Project history

Single-skin GRP deep-vee hull using PVC core with Kevlar and E-glass reinforcement; a semi-rigid inflatable fender surrounds the hull. Capable of maintaining 30 kts in 2m waves and Force 8 wind. Intended for antismuggling patrol off the northeast coast of Taiwan.

Modernizations

None.
