PP6001 patrol boats (1996-1997)
PP6006 2008
Ships
| Name | No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|
| PP6001 | Lung-Teh SB, Dong Shan | 1996 | stricken 2010s | |||
| PP6002 | Lung-Teh SB, Dong Shan | 1996 | stricken 2017-18 | |||
| PP6005 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s | |||
| PP6006 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s | |||
| PP6007 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s |
Technical data
| Displacement standard, t | 91 |
|---|---|
| Displacement full, t | 102 |
| Length, m | 28.0 pp 30.5 oa |
| Breadth, m | 6.20 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 2 Paxman 12VP185 diesels |
| Power, h. p. | 6640 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(25) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Racal-Decca radars |
| Complement | 12 |
Graphics

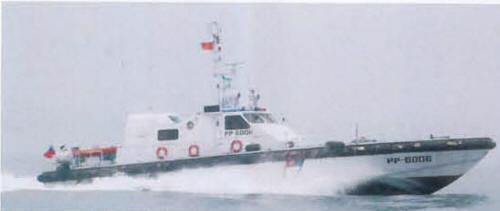

PP6006 2008
Project history
Ordered in 1995. Kevlar structure, with deep-vee hull form. Have X-band navigational radar, video plot, GPS receiver, D/F, and echo sounder. Carry a 6.5m RIB inspection craft.
Modernizations
None.
Naval service
No significant events.
