ROGER DE LAURIA destroyers (1969-1970)





Marqués de la Ensenada 1976

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Roger de Lauria D42   Bazán, Ferrol / Cartagena 4.9.1951 12.11.1958 //29.8.1967 30.5.1969 stricken 1982
Marqués de la Ensenada D43   Bazán, Ferrol / Cartagena 4.9.1951 15.7.1959 // 2.3.1968 10.9.1970 stricken 11.1988


Technical data


Displacement standard, t

3012

Displacement full, t

3785

Length, m

119.3

Breadth, m

13.0

Draught, m

5.60

No of shafts

2

Machinery

2 sets Rateau-Bretagne geared steam turbines, 3 3-drum boilers

Power, h. p.

60000

Max speed, kts

31

Fuel, t

oil 700

Endurance, nm(kts)4500(15)
Armament

3 x 2 - 127/38 Mk 38, 2 - 533 TT, 2 x 3 - 324 TT, 1 helicopter (Hughes 369HM)

Electronic equipment

SPS-10B, SPS-40, Decca RM426, Mk 25, Mk 35 radars, SQS-32C, SQA-10 sonars, WLR-1 ECM suite

Complement

318



Standard scale images

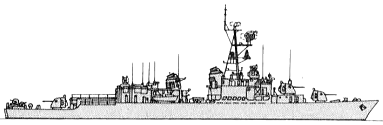

<i>Roger de Lauria </i>1980
Roger de Lauria 1980


Graphics

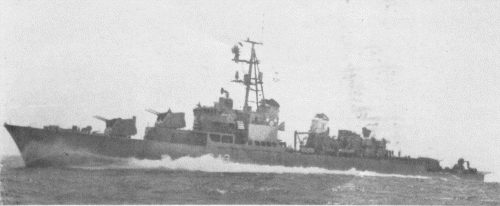

<i>Marqués de la Ensenada </i>1976
Marqués de la Ensenada 1976


Project history

Launched as units two and three of the Oquendo class (above) bul completed at Cartagena to an enlarged and modernized design; they were relaunched after hulks were lengthened and widened. Full US weapon and electronic fit, and generally to USN Gearing class FRAM II standards.

Modernizations

None.

Naval service

Marqués de la Ensenada was repaired after terrorist bomb attack on 2 October 1981, parts being taken from Roger de Lauria. Speed was reduced by recurrent boiler problems.
