RÍO ARBA patrol boats (2003-2014)
Río Cervera 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
M17 Río Arba M18 Río Caudal M19 Río Bernesga M20 Río Martín M21 Río Guadalobón M22 Río Sedeña M23 Río Ladra M24 Río Cervera M25 Río Júcar M26 Río Gallo M27 Río Jiloca M28 Río Alfambra M29 Río Santa Eulalia M30 Río Ulla M32 Río Mijares M33 Río Aragón, 2011- M28 Río Aragón M54 Sa Costera |
Rodman, Vigo: M17-32, 54 |
2003: M17 2004: M18-23 2005: M24-30 2006: M28 Río Alfambra, 32, 33 2014: M54 |
M28 Río Alfambra (2/2011) |
none |
in service (2019): M17-30, 32, 54 |
Technical data
| Displacement standard, t | 19 |
|---|---|
| Displacement full, t | 20 |
| Length, m | 17.0 |
| Breadth, m | 3.80 |
| Draught, m | 0.90 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V183 TE94 diesels |
| Power, h. p. | 2600 |
| Max speed, kts | 52 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(25) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Ericsson radar |
| Complement | 4 |
Graphics

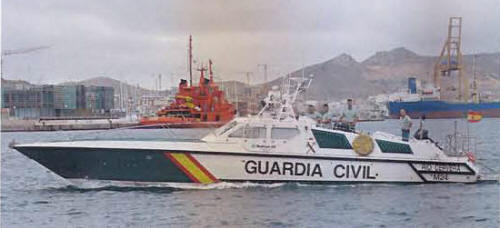

Río Cervera 2008
Project history
GRP hulls. Rodman 55HJ design.
Modernizations
None.
Naval service
No significant events.
