CORMORÁN fast gun attack craft (1989)
Espartana 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cormorán | P41 | Bazán, Ferrol | 10.1985 | 28.12.1989 | stricken 1.1994, to Colombia (Espartana) |
Technical data
| Displacement standard, t | 300 |
|---|---|
| Displacement full, t | 374 |
| Length, m | 55.6 |
| Breadth, m | 7.59 |
| Draught, m | 1.97 hull |
| No of shafts | 3 |
| Machinery | 3 MTU-Bazán 16V956 TB91 diesels |
| Power, h. p. | 13500 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Raytheon 1620 radar, Alcor-C e/o director |
| Complement | 32 |
Graphics

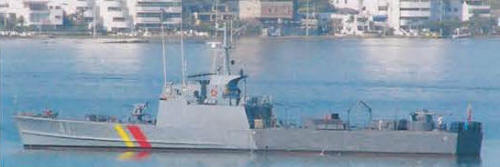

Espartana 2008
Project history
Launched as a speculation. Taken over by Spanish Navy in 1989 as testbed and patrol vessel.
Modernizations
None.
Naval service
No significant events.
