ANAGA patrol craft (1980-1982)

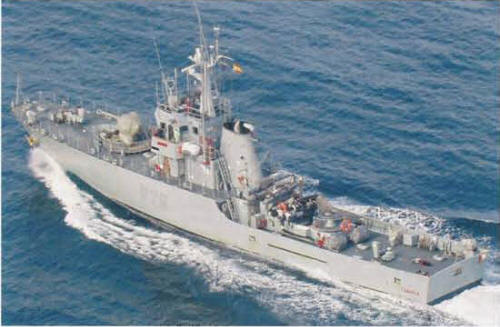

Tabarca 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Anaga PVZ21, 1986- P21   Bazán, La Carraca 4.1979 14.2.1980 14.10.1980 stricken 6.2010
Tagomago PVZ22, 1986- P22   Bazán, La Carraca   14.2.1980 30.1.1981 in service (2019)
Marola PVZ23, 1986- P23   Bazán, La Carraca   11.4.1980 4.6.1981 stricken 6.2010
Mouro PVZ24, 1986- P24   Bazán, La Carraca   21.4.1980 14.7.1981 stricken 6.2010
Grosa PVZ25, 1986- P25   Bazán, La Carraca   15.12.1980 15.9.1981 stricken 6.2012
Medas PVZ26, 1986- P26   Bazán, La Carraca   15.12.1980 16.10.1981 in service (2019)
Ízaro PVZ27, 1986- P27   Bazán, La Carraca   15.12.1980 9.12.1981 stricken 12.2010
Tabarca PVZ28, 1986- P28   Bazán, La Carraca   15.12.1980 30.12.1981 in service (2019)
Deva PVZ29, 1986- P29   Bazán, La Carraca   24.11.1981 3.6.1982 stricken 7.2004
Bergantín PVZ210, 1986- P30   Bazán, La Carraca   24.11.1981 28.7.1982 stricken 6.2010


Technical data


Displacement standard, t

296

Displacement full, t

350

Length, m

40.0 pp 44.4 oa

Breadth, m

6.60

Draught, m

2.60

No of shafts

1

Machinery

1 MTU-Bazán 16V956 SB90 diesel

Power, h. p.

4500

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)4000(13)
Armament

1 x 1 - 76/50 Mk 22, 1 x 1 - 20/70 Mk 10

Electronic equipment2x Decca 1226 radars
Complement

25



Standard scale images


<i>Anaga</i> 1990
Anaga 1990


Graphics


<i>Tabarca </i>2008
Tabarca 2008


Project history

Specially designed for fishery protection and EEZ patrol service, relieving the Lazaga class.

Modernizations

None.

Naval service

No significant events.
