L01 patrol boats (1991-1995)

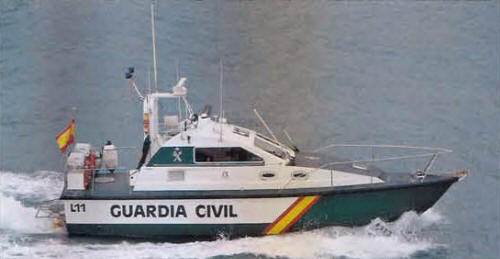

L11 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L01-12 |
Bazán-Izar, Cartagena: L01-12 |
1991: L01 1992: L02-06 1993: L07 1995: L08-12 |
L03 (2004) |
Senegal, 2004: L02 (Inspecteur Yafa) Mauritania, 2006: L01, 12 |
2010s: L04-11 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 14 |
| Length, m | 11.9 |
| Breadth, m | 3.80 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN D2848LXE diesels |
| Power, h. p. | 1360 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Ericsson radar |
| Complement | 4 |
Graphics
L11 2008
Project history
GRP hulls. The design was based on that of the civil Saetta-Il yacht.
Modernizations
None.
Naval service
No significant events.
