T.13 minesweepers (1916-1917)

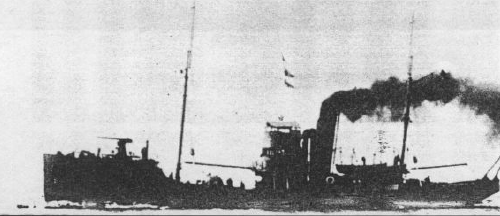

Goldaxe (ex-T.13) Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
T.13   684 Smiths Dock, South Bank, UK 1916 1916 8.1916 captured by Britain 8.1918 (Goldaxe)
T.14   685 Smiths Dock, South Bank, UK 1916 1916 8.1916 captured by Britain 8.1918 (Stoneaxe)
T.15, 1923- ПС-1 [PS-1], 1.1941- Нептун [Neptun], 8.1941- СКР-20 [SKR-20] 20 686 Smiths Dock, South Bank, UK 1916 1916 8.1916 sunk 2.8.1918, salvaged and commissioned by Whites late 1918, captured by Reds 3.1920, board guard ship 10.1922, navy guard ship 6.1941, board guard ship 1.1946, stricken late 1940s
T.16   687 Smiths Dock, South Bank, UK 1916 1916 8.1916 captured by Britain 8.1918 (Battleaxe)
T.17   688 Smiths Dock, South Bank, UK 1916 1916 8.1916 captured by Britain 8.1918 (Iceaxe)
T.18   689 Smiths Dock, South Bank, UK 1916 1916 8.1916 wrecked 3.1917
T.19   690 Smiths Dock, South Bank, UK 1916 1916 9.1916 wrecked 9.1916
T.19     Cochrane, Selby, UK 1916 1917 1917 captured by Britain 8.1918 (Poleaxe)
T.20   691 Smiths Dock, South Bank, UK 1916 1916 9.1916 captured by Britain 8.1918 (Woodaxe)
T.21   692 Smiths Dock, South Bank, UK 1916 1916 9.1916 captured by Whites 8.1918, abandoned, commissioned by Reds 4.1920, guard ship 5.1920, board guard ship 12.1922, survey vessel 6.1924
T.22   693 Smiths Dock, South Bank, UK 1916 1916 9.1916 captured by Britain 8.1918 (Ironaxe)
T.23   694 Smiths Dock, South Bank, UK 1916 1916 9.1916 captured by Whites 8.1918 (Макрель [Makrel']), abandoned, commissioned by Reds 4.1920, guard ship 5.1920, board guard ship 12.1922, survey vessel 6.1924
T.24   695 Smiths Dock, South Bank, UK 1916 1916 9.1916 captured by Whites 8.1918 (Щука [Shchuka]), abandoned, commissioned by Reds 4.1920, rescue vessel 3.1921, survey vessel 5.1921, board guard ship 12.1922, survey vessel 5.1924


Technical data


Displacement normal, t

500

Displacement full, t

580

Length, m

43.2

Breadth, m

7.20

Draught, m

3.50

No of shafts

1

Machinery

1 VTE, 1 Yarrow boiler

Power, h. p.

500

Max speed, kts

11

Fuel, t

coal

Endurance, nm(kts)3840(6)
Armament

1 x 1 - 57/50 Hotchkiss, 1 x 1 - 7.6/94, mechanical minesweeping gear, 30 mines

Complement

35



Standard scale images


<i>T.13</i> 1916
T.13 1916


Graphics


<i>Goldaxe</i> <i>(ex-T.13)</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Goldaxe (ex-T.13) Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built on the basis of fishing trawler ship Bombardier. The hull with icebreaker streamlines and ice stiffenings.

Modernizations

1917, T.13, T.14, T.17, T.18: - 1 x 1 - 57/50; + 1 x 1 - 75/48 Canet.

1917, T.15, T.16: - 1 x 1 - 57/50; + 1 x 1 - 76/28 Lender

1920, T.23; 1922, T.15, T.21, T.24: - minesweeping gear, mines

1941, Neptun: - 1 x 1 - 76/28; + 2 x 1 - 45/43 21K, 1 x 1 - 7.6/94

1943, SKR-20: + 2 x 1 - 20/70 Oerlikon Mk IV

Naval service

T.15 was sunk by British field guns 2.8.1918, later salvaged and commissioned by Whites. She was re-captured by Reds in 1920 and served since late 1940s. In 1918 T13, 14, 16, 17, 20 and 22 were captured by British troops and are withdrawn abroad. T19 during passage to Russia ran ashore at coast of Scotland and has sunk. T18 during minesweeping operation in March, 1917 ran ashore in Kola bay and was wrecked by a surf. Remaining ships after Civil war were sold mercantile.

Many thanks to Wolfgang Stöhr for additional information on this page.
