SDK-81 medium landing ships (projects 771, 771A) (1967 - 1970)

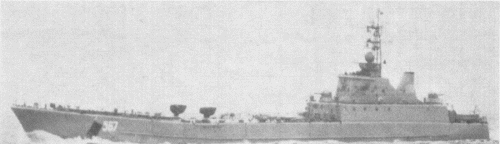

Pr. 771A 1974
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| СДК-81 [SDK-81], 1992- МДК-81 [MDK-81] | 771/1 | Stocznia Północna, Gdańsk, Poland | 2.1.1966 | 17.9.1966 | 15.6.1967 | stricken 1996 | Project 771 | |
| СДК-84 [SDK-84] | 771/2 | Stocznia Północna, Gdańsk, Poland | 1.4.1966 | 18.1.1967 | 30.6.1967 | wrecked 4.8.1977 | Project 771 | |
| СДК-87 [SDK-87], 1992- МДК-87 [MDK-87] | 771/3 | Stocznia Północna, Gdańsk, Poland | 14.4.1966 | 31.10.1966 | 28.7.1967 | stricken 6.1993 | Project 771 | |
| СДК-89 [SDK-89] | 771/4 | Stocznia Północna, Gdańsk, Poland | 9.5.1966 | 28.2.1967 | 26.8.1967 | test vessel OS-246 1978 | Project 771 | |
| СДК-82 [SDK-82] | 771/5 | Stocznia Północna, Gdańsk, Poland | 18.5.1966 | 25.3.1967 | 31.8.1967 | to Cuba 9.1982 (690) | Project 771 | |
| СДК-96 [SDK-96], 1992- МДК-96 [MDK-96] | 771/6 | Stocznia Północna, Gdańsk, Poland | 24.6.1966 | 10.4.1967 | 30.9.1967 | stricken 6.1993 | Project 771 | |
| СДК-99 [SDK-99], 1992- МДК-99 [MDK-99] | 771/7 | Stocznia Północna, Gdańsk, Poland | 1.9.1966 | 15.5.1967 | 25.10.1967 | stricken 7.1994 | Project 771 | |
| СДК-102 [SDK-102], 1992- МДК-102 [MDK-102] | 771/11 | Stocznia Północna, Gdańsk, Poland | 12.11.1966 | 11.9.1967 | 25.1.1968 | stricken 3.1992 | Project 771 | |
| СДК-106 [SDK-106] | 771/12 | Stocznia Północna, Gdańsk, Poland | 2.1.1967 | 30.10.1967 | 26.3.1968 | stricken 1976-1983 | Project 771 | |
| СДК-177 [SDK-177] | 771/13 | Stocznia Północna, Gdańsk, Poland | 7.3.1967 | 27.11.1967 | 30.4.1968 | stricken 1976-1983 | Project 771 | |
| СДК-178 [SDK-178] | 771/14 | Stocznia Północna, Gdańsk, Poland | 13.3.1967 | 22.12.1967 | 31.5.1968 | to Angola 1979 (12) | Project 771 | |
| СДК-171 [SDK-171] | 771/15 | Stocznia Północna, Gdańsk, Poland | 1.6.1967 | 21.2.1968 | 30.6.1968 | stricken 1976-1983 | Project 771 | |
| СДК-172 [SDK-172], 1992- МДК-172 [MDK-172] | 771/16 | Stocznia Północna, Gdańsk, Poland | 1.6.1967 | 14.9.1968 | 10.5.1968 | stricken 3.1992 | Project 771 | |
| СДК-107 [SDK-107], 1992- МДК-107 [MDK-107] | 771A/20 | Stocznia Północna, Gdańsk, Poland | 16.2.1968 | 22.10.1968 | 28.2.1969 | to Azerbaijan 7.1992 (D433) | Project 771A | |
| СДК-108 [SDK-108], 1992- МДК-108 [MDK-108] | 771A/21 | Stocznia Północna, Gdańsk, Poland | 17.6.1968 | 28.2.1969 | 30.6.1969 | stricken 8.1995 | Project 771A | |
| СДК-109 [SDK-109] | 771A/22 | Stocznia Północna, Gdańsk, Poland | 20.7.1968 | 26.3.1969 | 31.7.1969 | to Cuba 12.1982 (691) | Project 771A | |
| СДК-110 [SDK-110], 1992- МДК-110 [MDK-110] | 771A/23 | Stocznia Północna, Gdańsk, Poland | 1.8.1968 | 28.4.1969 | 31.8.1969 | stricken 1976-1983 | Project 771A | |
| СДК-111 [SDK-111], 1992- МДК-111 [MDK-111] | 771A/24 | Stocznia Północna, Gdańsk, Poland | 23.9.1968 | 30.5.1969 | 30.9.1969 | stricken 6.1993 | Project 771A | |
| СДК-112 [SDK-112] | 771A/25 | Stocznia Północna, Gdańsk, Poland | 4.11.1968 | 28.6.1969 | 31.10.1969 | to Vietnam 1.1980 (HQ512) | Project 771A | |
| СДК-71 [SDK-71] | 771A/28 | Stocznia Północna, Gdańsk, Poland | 18.5.1969 | 15.11.1969 | 25.3.1970 | to Vietnam 5.1979 (HQ511) | Project 771A | |
| СДК-73 [SDK-73], 1992- МДК-73 [MDK-73] | 771A/29 | Stocznia Północna, Gdańsk, Poland | 16.6.1969 | 22.12.1969 | 22.4.1970 | stricken 7.1994 | Project 771A | |
| СДК-74 [SDK-74] | 771A/30 | Stocznia Północna, Gdańsk, Poland | 11.7.1969 | 31.1.1970 | 30.5.1970 | to Vietnam 4.1980 (HQ513) | Project 771A | |
| СДК-76 [SDK-76], 1992- МДК-76 [MDK-76] | 771A/31 | Stocznia Północna, Gdańsk, Poland | 10.11.1969 | 29.4.1970 | 27.8.1970 | cargo carrier 6.1993 | Project 771A | |
| СДК-79 [SDK-79], 1992- МДК-79 [MDK-79] | 771A/32 | Stocznia Północna, Gdańsk, Poland | 25.11.1969 | 12.6.1970 | 12.10.1970 | stricken 6.1993 | Project 771A | |
| СДК-80 [SDK-80] | 771A/33 | Stocznia Północna, Gdańsk, Poland | 16.1.1970 | 11.8.1970 | 30.11.1970 | stricken 1976-1983 | Project 771A |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | pr. 771: 795 pr. 771A: 805 |
|---|---|
| Displacement normal, t | pr. 771: 847 pr. 771A: 857 |
| Length, m | 75.2 |
| Breadth, m | 9.02 |
| Draught, m | pr. 771: 2.06 pr. 771A: 2.07 |
| No of shafts | 2 |
| Machinery | 2 40DM diesels |
| Power, h. p. | 4400 |
| Max speed, kts | 18.4 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(16) |
| Armament | pr. 771: 1 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL pr. 771A: 2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL |
| Military load | 6 medium tanks or 10 trucks, 204 troops |
| Electronic equipment | Donets-2, MR-104 Rys' radars |
| Complement | 37 |
Standard scale images
SDK-107 1970
SDK-107 1979
Graphics
Pr. 771A 1974
Project history
The decision to provide rockets aboard the landing ship for close-in support would seem to be a major shift in Soviet doctrine. It is possible that the earlier craft were intended for unopposed landings, merely moving tanks more expeditiously than would be possible by land. Note, too, that the Project 770/771/773 was the first Soviet amphibious ship apparently designed for troop carrying. In 1992 all survived ships were reclassified from SDK (medium landing ship) to MDK (small landing ship).
Modernizations
1970, SDK-99 and 2 others: + mine clearing line charge
1970s, SDK-71, 73, 79, 82, 96, 108, 109: + 4 x 4 Strela-2M or Strela-3M SAM (32 9M32M)
Naval service
SDK-84 ran aground 4.8.1977 in Zorkaya Bight (Kuril Islands), wrecked and later demolished by explosive charges.
