T-404 Shchit

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Заряд [Zariad], 7.1939- Т-201 Заряд [T-201 Zariad]		459	190 Yd, Leningrad	10.1933	10.10.1934	12.1936	sunk 4.8.1941	project 3
Буй [Buy], 7.1939- Т-202 Буй [T-202 Buy]		460	190 Yd, Leningrad	12.1933	5.11.1934	8.1938	sunk 15.8.1941	project 3
Патрон [Patron], 7.1939- Т-203 Патрон [T-203 Patron]		461	190 Yd, Leningrad	12.1933	30.9.1934	7.1938	sunk 25.10.1941	project 3
Фугас [Fugas], 7.1939- Т-204 Фугас [T-204 Fugas]		462	190 Yd, Leningrad	1.1934	25.10.1934	12.1936	sunk 24.8.1942	project 3
Трал [Tral], 7.1939- Т-401 Трал [T-401 Tral], 8.1944- ЭМТЩ-401 Трал [EMTShch-401 Tral]		67	201 Yd, Sevastopol	11.1933	23.8.1934	12.1936	stricken 9.1955	project 3
Минреп [Minrep], 7.1939- Т-402 Минреп [T-402 Minrep]		68	201 Yd, Sevastopol	11.1933	14.1.1935	1.1937	sunk 12.9.1941	project 3
Груз [Gruz], 7.1939- Т-403 Груз [T-403 Gruz]		69	201 Yd, Sevastopol	3.1934	21.9.1935	7.1937	sunk 27.2.1943	project 3
Щит [Shchit], 7.1939- Т-404 Щит [T-404 Shchit]		70	201 Yd, Sevastopol	1.1934	17.12.1935	10.1937	stricken 4.1956	project 3
Стрела [Strela], 7.1939- Т-1 Стрела [T-1 Strela]		491/111	190 Yd, Leningrad // 196 Yd, Leningrad	5.1935	17.5.1936	8.1938	stricken 9.1955	project 53
Трос [Tros], 7.1939- Т-2 Трос [T-2 Tros]		492/112	190 Yd, Leningrad // 196 Yd, Leningrad	5.1935	21.6.1936	9.1938	to North Korea 12.1953	project 53
Подсекатель [Podsekatel'], 7.1939- Т-3 Подсекатель [T-3 Podsekatel']		494/114	190 Yd, Leningrad // 196 Yd, Leningrad	9.1935	10.12.1936	11.1938	stricken 6.1950	project 53
Проводник [Provodnik], 7.1939- Т-4 Проводник [T-4 Provodnik]		493/113	190 Yd, Leningrad // 196 Yd, Leningrad	6.1935	30.10.1936	12.1938	stricken 10.1950	project 53
Веха [Vekha], 7.1939- Т-7 Веха [T-7 Vekha]		179	201 Yd, Sevastopol	12.1936	14.3.1938	9.1938	stricken 10.1950	project 53
Чека [Cheka], 7.1939- Т-8 Чека [T-8 Cheka]		180	201 Yd, Sevastopol	12.1936	14.3.1938	11.1938	to North Korea 12.1953	project 53
Взрыватель [Vzryvatel'], 7.1939- Т-405 Взрыватель [T-405 Vzryvatel']		175	201 Yd, Sevastopol	8.1936	27.4.1937	4.1938	sunk 5.1.1942	project 53
Искатель [Iskatel'], 7.1939- Т-406 Искатель [T-406 Iskatel']		176	201 Yd, Sevastopol	7.1936	29.8.1937	4.1938	stricken 12.1954	project 53
Мина [Mina], 7.1939- Т-407 Мина [T-407 Mina], 8.1944- ЭМТЩ-407 Мина [EMTShch-407 Mina]		178	201 Yd, Sevastopol	2.1937	20.8.1937	8.1938	stricken 4.1956	project 53
Защитник [Zashchitnik], 7.1939- Т-411 Защитник [T-411 Zashchitnik]		177	201 Yd, Sevastopol	12.1936	31.7.1937	7.1938	sunk 15.6.1943	project 53
Гафель [Gafel'], 7.1939- Т-205 Гафель [T-205 Gafel']		14	363 Yd, Leningrad	10.1937	29.7.1938	7.1939	stricken 9.1955	project 53U

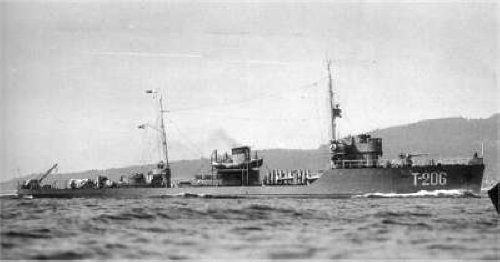

Верп [Verp], 7.1939- Т-206 Верп [T-206 Verp]		15	363 Yd, Leningrad	10.1937	17.7.1938	6.1939	sunk 14.11.1941	project 53U
Т-207 Шпиль [T-207 Shpil']		16	363 Yd, Leningrad	11.1937	18.8.1938	9.1939	stricken 9.1955	project 53U
Т-208 Шкив [T-208 Shkiv]		17/129	363 Yd, Leningrad // 196 Yd, Leningrad	11.1937	31.10.1938	10.1939	sunk 24.6.1941	project 53U
Т-209 Кнехт [T-209 Knekht]		18	363 Yd, Leningrad	6.1938	17.8.1939	6.1940	sunk 24.8.1941	project 53U
Т-210 Гак [T-210 Gak]		19	363 Yd, Leningrad	8.1938	15.4.1939	11.1939	stricken 1.1961	project 53U
Т-211 Рым [T-211 Rym]		20	363 Yd, Leningrad	9.1938	5.5.1939	6.1940	stricken 2.1960	project 53U
Т-212 Штаг [T-212 Shtag]		21	363 Yd, Leningrad	11.1938	2.12.1939	7.1940	sunk 3.8.1941	project 53U
Т-213 Крамбол [T-213 Krambol]		92	370 Yd, Leningrad	8.1938	30.1.1939	11.1939	sunk 11.8.1941	project 53U
Т-214 Бугель [T-214 Bugel']		93	370 Yd, Leningrad	8.1938	31.1.1939	6.1940	sunk 24.8.1941	project 53U
T-215		24	363 Yd, Leningrad	4.1939	17.12.1939	7.1940	stricken 6.1961	project 53U
T-216		27	363 Yd, Leningrad	9.1939	30.4.1940	12.1940	sunk 6.7.1941	project 53U
Т-217 Контр-адмирал Юрковский [T-217 Kontr-admiral Yurkovskiy]		28	363 Yd, Leningrad	9.1939	31.7.1940	8.1941	stricken 6.1961	project 53U
T-218		22	363 Yd, Leningrad	3.1939	24.11.1939	12.1940	stricken 3.1958	project 53U
Т-219 Контр-адмирал Хорошхин [T-219 Kontr-admiral Khoroshkhin]		34/34	363 Yd, Leningrad // 370 Yd, Leningrad	4.1941	24.9.1943	9.1944	stricken 3.1958	project 53U
T-220		35/36	363 Yd, Leningrad // 370 Yd, Leningrad	4.1941	16.11.1943	10.1946	stricken 1.1961	project 53U
T-221, 11.1949- Т-221 Дмитрий Лысов [T-221 Dmitriy Lysov]		36	363 Yd, Leningrad // 370 Yd, Leningrad	6.1941	6.6.1946	11.1946	stricken 6.1961	project 53U
Параван [Paravan], 7.1939- Т-5 Параван [T-5 Paravan]		187	201 Yd, Sevastopol	3.1937	28.1.1938	12.1938	stricken 10.1950	project 58
Капсюль [Kapsiul], 7.1939- Т-6 Капсюль [T-6 Kapsiul]		188	201 Yd, Sevastopol	3.1937	28.1.1938	1.1939	stricken 10.1950	project 58
Якорь [Yakor'], 7.1939- Т-408 Якорь [T-408 Yakor']		189	201 Yd, Sevastopol	3.1937	14.1.1938	2.1939	stricken 4.1956	project 58
Гарпун [Garpun], 7.1939- Т-409 Гарпун [T-409 Garpun]		190	201 Yd, Sevastopol	3.1937	14.1.1938	2.1939	stricken 4.1956	project 58
Взрыв [Vzryv], 7.1939- Т-410 Взрыв [T-410 Vzryv]		191	201 Yd, Sevastopol	4.1937	6.11.1938	3.1939	sunk 2.9.1944	project 58
T-412, 1.1943- Т-412 А. Расскин [T-412 A. Rasskin], 8.1944- Т-412 Арсений Расскин [T-412 Arseniy Rasskin]		255	201 Yd, Sevastopol	4.1939	5.11.1939	3.1941	stricken 4.1956	project 58
T-413		256	201 Yd, Sevastopol	4.1939	12.10.1940	4.1941	sunk 13.6.1942	project 58
T-414		267	201 Yd, Sevastopol	1.1941	29.4.1941	---	cancelled	project 58
T-415		268	201 Yd, Sevastopol	3.1941	5.11.1947	---	cancelled	project 58

Technical data

Displacement standard, t	project 3: 428 project 53: 410 project 53u: 417 project 58: 406
Displacement full, t	project 3: 445 project 53: 503 project 53u: 480 project 58: 459
Length, m	62.0
Breadth, m	project 3, 53, 58: 7.20 project 53u: 7.40
Draught, m	project 3: 2.03 project 53: 2.26 project 53u: 2.16 project 58: 2.13
No of shafts	2
Machinery	project 3, 53: 2 42-BMRN-6 diesels project 53u, 58: 2 BD diesels
Power, h. p.	project 3, 53: 2800 project 53u, 58: 2900
Max speed, kts	project 3, 58: 18.5 project 53: 17.8 project 53u: 18.2
Fuel, t	project 3, 53u, 58: diesel oil 61.5 project 53: diesel oil 60
Endurance, nm(kts)	project 3: 2900(14.9) project 53: 3000(13.9) project 53u: 2840(13.9) project 58: 3300(14.7)
Armament	project 3: 1 x 1 - 100/49 B-24, 1 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 2 DCR (20), 31 mines, ShT-1, ZT-1 mechanical minesweeping gear project 53, 53u, 58: 1 x 1 - 100/54 B-24-BM, 1 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 2 DCR (20), 31 mines, ShT-1, ZT-1 mechanical minesweeping gear T-217 Kontr-admiral Yurkovskiy, T-412, 413: 1 x 1 - 100/54 B-24-BM, 1 x 1 - 37/63 70K, 2 x 1 - 12.7/79, 2 DCR (20), 31 mines, ShT-1, ZT-1 mechanical minesweeping gear T-219 Kontr-admiral Khoroshkhin: 1 x 1 - 100/54 B-24-BM, 2 x 1 - 37/63 70K, 4 x 2 - 12.7/79, 2  DCR (20), 31 mines, ShT-1, ZT-1 mechanical minesweeping gear T-220, 221: 1 x 1 - 100/56 B-24-BM, 1 x 1 - 45/45 21K, 2 x 1 - 12.7/79, 2 DCR (20), 31 mines, ShT-1, ZT-1 mechanical minesweeping gear
Electronic equipment	T-218: Persey, Poseydon sonars
Complement	project 3: 42 project 53: 44 project 53u, 58: 47

Standard scale images

Graphics

Project history

Fast coastal minesweepers. Requirements for the design was made in 1925, technical requirements on their basis were given out in 1930. Initial purpose was minesweeping, ASW service and fast escort. At a choice of displacement, armament and machinery structure as starting point French Diligente class aviso was used. The design was approved 27.3.1932. During building of first ships of project 3 the insufficient stability was discovered, therefore subsequent ships of this class were built under modified projects (project 53 provided solid ballast, project 53u hull broadening, project 58 change of gears arrangement).     Fugas class minesweepers appeared one of the most successful ships of Soviet Navy. Possessed high seaworthiness and damage tolerance. The deep draught, weak antiaircraft armament, absence of a sonar and sweeps against mines of new types (with acoustic and magnetic fuses) concerned to lacks, the latter problem was partly indemnified during modernizations.

Modernizations

early 1941, T-204 Fugas: + magnetic minesweeping gear

winter 1941/42, T-204 Fugas, T-205 Gafel', T-207 Shpil, T-210 Gak, T-211 Rym, T-215, T-217 Kontr-admiral Yurkovskiy, T-218: + 2 x 1 - 20/70 Oerlikon Mk II/IV

1942, T-401 Tral, T-403 Gruz, T-404 Shchit, T-406 Iskatel', T-409 Garpun, T-410 Vzryv, T-411 Zashchitnik, T-412; 1943, T-407 Mina, T-408 Yakor': + 3 x 1 - 37/63 70K

1942 - 1943, T-1 Strela, T-2 Tros, T-3 Podsekatel', T-4 Provodnik, T-5 Paravan, T-6 Kapsiul, T-7 Vekha, T-8 Cheka: - 1 x 1 - 45/43; + 3 x 1 - 37/63 70K, 2 x 1 - 12.7/79

1/1943, T-406 Iskatel', T-409 Garpun: + 2 x 1 - 533 TT

1943, T-205 Gafel': - 1 x 1 - 45/43, 2 x 1 - 12.7/79; + 2 x 1 - 37/63 70K, 4 x 2 - 12.7/79

late 1943, T-406 Iskatel', T-409 Garpun: - 2 x 1 - 533 TT

early 1944, T-401 Tral, T-407 Mina: + LL magnetic minesweeping gear

late 1940s, T-205 Gafel', T-207 Shpil', T-210 Gak, T-211 Rym, T-215, T-217 Kontr-admiral Yurkovskiy, T-218, T-219 Kontr-admiral Khoroshkhin, T-220, T-221 Dmitriy Lysov: - 1 x 1 - 37/63; + LL magnetic minesweeping gear

early 1950s, all survived: had mine countermeasure equipment consisted of MT-1 or MT-2, MKT-3 mechanical, TEM-U or TEM-U1 magnetic, GAT, BAT-2 acoustic minesweeping gear, + nav. radar

Naval service

All losses on Baltic fall to mines: as a result of mining were lost: T-208 Shkiv 24.6.1941 in Hari-Kurk Strait; T-216 6.7.1941 at Cape Tahkuna; T-212 Shtag 3.8.1941 in Soela-Vjajn Strait; T-201 Zariad 4.8.1941 at Ristna beacon; T-213 Krambol 11.8.1941 and T-202 Buy 15.8.1941 off Cape Yuminda; T-209 Knekht and T-214 Bugel' 24.8.1941, T-203 Patron 25.10.1941, T-206 Verp 14.11.1941 at Keri Island; T-204 Fugas 24.8.1942 E off Gotland. T-210 Gak 2.7.1944 was mined and has sunk off Koivisto, but soon salvaged and in 1944 commissioned again.    T-402 Minrep 12.9.1941 was lost on a mine at Feodosia. T-405 Vzryvatel' 5.1.1942 was damaged by German aircraft and ran aground at Feodosia where in the morning 6.1.1942 destroyed by German field artillery. T-413 13.6.1942 was sunk by German aircraft at Cape Fiolent. T-403 Gruz 27.2.1943 was sunk by German MTBs S28, 51, 72, 102 at Myskhako. T-411 Zashchitnik 15.6.1943 was sunk by German submarine U24  off Sukhumi. T-410 Vzryv 2.9.1944 was sunk by German submarine U19 at Constanza.
