D-456 landing craft (air cushion) (project 1206) (1972 - 1985)





D-154 1995

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Д-456 [D-456]   131 Almaz, Leningrad     12.1972 stricken 6.1993
Д-235 [D-235]   132 Almaz, Leningrad     1.1974 stricken late 1980s
Д-633 [D-633]   101 More, Feodosia     12.1975 stricken 1988
Д-379 [D-379]   102 More, Feodosia     1976 stricken 1988
Д-703 [D-703]   103 More, Feodosia     12.1976 stricken 4.1990
Д-435 [D-435]   104 More, Feodosia     12.1977 stricken 3.1992
Д-438 [D-438]   105 More, Feodosia     12.1977 stricken 3.1992
Д-277 [D-277]   106 More, Feodosia     9.1978 stricken 6.1993
Д-279 [D-279]   107 More, Feodosia     8.1979 stricken 7.1994
Д-347 [D-347]   108 More, Feodosia     11.1979 stricken 6.1993
Д-348 [D-348]   109 More, Feodosia     8.1980 stricken 6.1993
Д-52 [D-52]   110 More, Feodosia     11.1980 stricken 6.1993
Д-64 [D-64]   111 More, Feodosia     8.1981 stricken 7.1994
Д-154 [D-154]   112 More, Feodosia     12.1981 stricken 6.2006
Д-141 [D-141]   113 More, Feodosia     8.1982 stricken 8.2000
Д-145 [D-145]   114 More, Feodosia     1982 stricken 2012
Д-451 [D-451]   115 More, Feodosia     9.1983 stricken 7.1996
Д-452 [D-452]   116 More, Feodosia     6.1984 stricken 7.1997
Д-454 [D-454]   117 More, Feodosia     11.1984 stricken 7.1996
Д-457 [D-457]   118 More, Feodosia     9.1985 stricken 2012


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Д-456 [D-456]   131 Almaz, Leningrad     12.1972 stricken 6.1993 Д-235 [D-235]   132 Almaz, Leningrad     1.1974 stricken late 1980s Д-633 [D-633]   101 More, Feodosia     12.1975 stricken 1988 Д-379 [D-379]   102 More, Feodosia     1976 stricken 1988 Д-703 [D-703]   103 More, Feodosia     12.1976 stricken 4.1990 Д-435 [D-435]   104 More, Feodosia     12.1977 stricken 3.1992 Д-438 [D-438]   105 More, Feodosia     12.1977 stricken 3.1992 Д-277 [D-277]   106 More, Feodosia     9.1978 stricken 6.1993 Д-279 [D-279]   107 More, Feodosia     8.1979 stricken 7.1994 Д-347 [D-347]   108 More, Feodosia     11.1979 stricken 6.1993 Д-348 [D-348]   109 More, Feodosia     8.1980 stricken 6.1993 Д-52 [D-52]   110 More, Feodosia     11.1980 stricken 6.1993 Д-64 [D-64]   111 More, Feodosia     8.1981 stricken 7.1994 Д-154 [D-154]   112 More, Feodosia     12.1981 stricken 6.2006 Д-141 [D-141]   113 More, Feodosia     8.1982 stricken 8.2000 Д-145 [D-145]   114 More, Feodosia     1982 stricken 2012 Д-451 [D-451]   115 More, Feodosia     9.1983 stricken 7.1996 Д-452 [D-452]   116 More, Feodosia     6.1984 stricken 7.1997 Д-454 [D-454]   117 More, Feodosia     11.1984 stricken 7.1996 Д-457 [D-457]   118 More, Feodosia     9.1985 stricken 2012

Technical data


Displacement standard, t

108

Displacement normal, t

114

Length, m

24.6

Breadth, m

10.8

Draught, m

1.30

No of shafts

2 air propellers

Machinery

2 MT-70 gas turbines for lift and propulsion

Power, h. p.

20000

Max speed, kts

55

Fuel, t

gas turbine oil

Endurance, nm(kts)

100(50)

Armament

1 x 2 - 12.7/79

Military load

1 tank or 120 troops or 37 t of cargo

Electronic equipment

Kivach-2 radar

Complement

6



Standard scale images


<i>D-456 </i> 1980
D-456 1980


Graphics

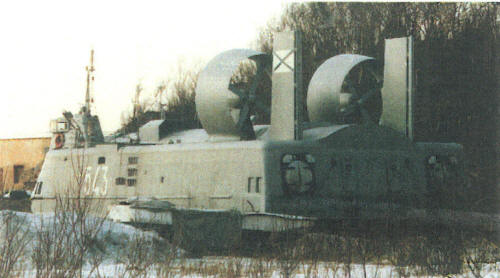

<i>D-154 </i>1995
D-154 1995


Project history

Small hovercraft, carried by Ivan Rogov class LPDs.

Modernizations

None.

Naval service

No significant events.
