ORLIK minesweepers (project 206F, 1963 - 1967)





Pelikan 1975

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Orlik 613   Stocnia im Komuny Pariskiej, Gdynia 8.2.1962 31.5.1962 25.8.1963 stricken 10.1989
Krogulec 614   Stocnia im Komuny Pariskiej, Gdynia 6.6.1962 7.11.1962 10.11.1963 stricken 10.1989
Jastrząb 615   Stocnia im Komuny Pariskiej, Gdynia 13.7.1962 11.2.1963 4.1.1964 stricken 4.1990
Kormoran 616   Stocnia im Komuny Pariskiej, Gdynia 26.4.1963 30.12.1963 10.1.1965 stricken 6.1993
Czapla 617   Stocnia im Komuny Pariskiej, Gdynia 16.8.1963 13.6.1964 4.7.1965 stricken 4.1990
Albatros 618   Stocnia im Komuny Pariskiej, Gdynia 8.6.1964 15.4.1965 6.11.1965 stricken 12.1994
Pelikan 619   Stocnia im Komuny Pariskiej, Gdynia 2.2.1965 26.10.1965 7.6.1966 stricken 12.1993
Tukan 620   Stocnia im Komuny Pariskiej, Gdynia 6.7.1965 30.12.1965 27.8.1966 stricken 10.2000
Flaming 621   Stocnia im Komuny Pariskiej, Gdynia 7.1.1966 5.5.1966 11.10.1966 in service (2019)
Rybitwa 622   Stocnia im Komuny Pariskiej, Gdynia 12.5.1966 30.8.1966 15.4.1967 stricken 1.2002
Mewa 623   Stocnia im Komuny Pariskiej, Gdynia 18.7.1966 22.12.1966 21.5.1967 in service (2019)
Czajka 624   Stocnia im Komuny Pariskiej, Gdynia 12.9.1966 17.12.1966 23.6.1967 in service (2019)


Technical data


Displacement standard, t

426

Displacement full, t

550

Length, m

58.2

Breadth, m

7.97

Draught, m

2.14

No of shafts

2

Machinery

2 Fiat 2312SS diesels

Power, h. p.

3540

Max speed, kts

18.4

Fuel, t

diesel oil 45

Endurance, nm(kts)

2000(17)

Armament

3 x 2 - 25/80 2M-3M, 2 DCR (12), 8 AMD-1000 or 16 obr. 1939 mines, MT-2 mechanical, TEM-52M magnetic, BGAT-2 acoustic minesweeping gear

Electronic equipment

Don radar, Tamir-11M sonar

Complement

49



Standard scale images


<i>Orlik </i>1970
Orlik 1970
<i>Flaming </i>2010
Flaming 2010


Graphics

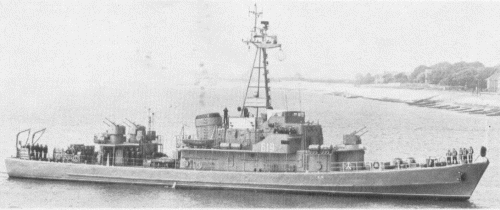

<i>Pelikan </i>1975
Pelikan 1975

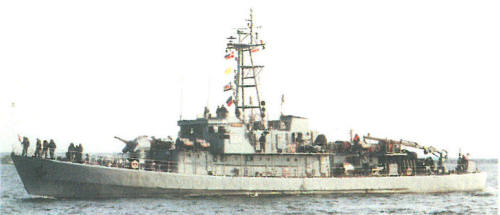

<i>Czajka </i>2003
Czajka 2003


Project history Designation Project 206F, planned as series of fifteen ships with construction scheduled for 1957. Design modified as compared with the Project 254 with more compact layout,

Designation Project 206F, planned as series of fifteen ships with construction scheduled for 1957. Design modified as compared with the Project 254 with more compact layout, flush deck and close range weapon added. However because of financial and technical problems (short delivery of Fiat engines) only twelve ships were built.

Modernizations

1980s, mostly: - 3 x 2 - 25/80; + 2 x 4 Fasta-4M SAM (16 9M32M Strela-2M), 1 x (2 - 23/87 + 4 Strela-2M SAM) ZU-23-2MR Wrobel-2MR

1999, Mewa, Czajka; 2001, Flaming: - TEM-52M minesweeping gear, Don radar, Tamir-11M sonar; + Ukwial minehunting USV, TEM-PE-2M magnetic minesweeping gear, decompression chamber for mine-disposal divers, 10 sonobuoys, Decca BridgeMaster-E radar, SHL-100AM, SHL-200M-1 sonars, PIT Bren ECM suite, 6x9-81 decoy launchers; diesels were replaced by 2 Sulzer-Cegielski ATL25/30 (3740hp)

Naval service

No significant events.
